Plotting Biomineralization Gene Expression vs Gene Body Methylation in Three Coral Species

x-y
e5
coral
Author
Affiliation

Steven Roberts

Professor, UW - School of Aquatic and Fishery Sciences

Published

December 1, 2025

Overview

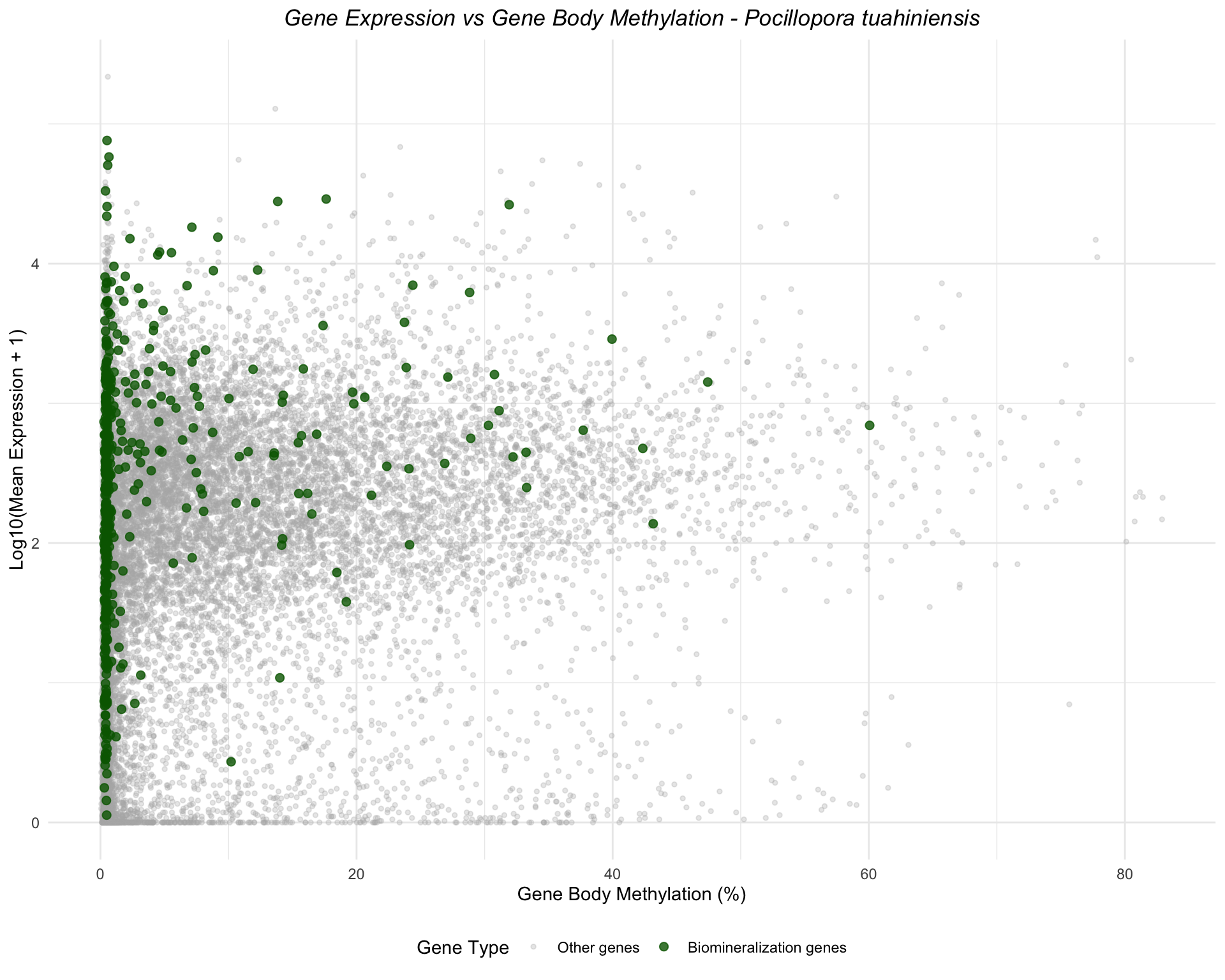

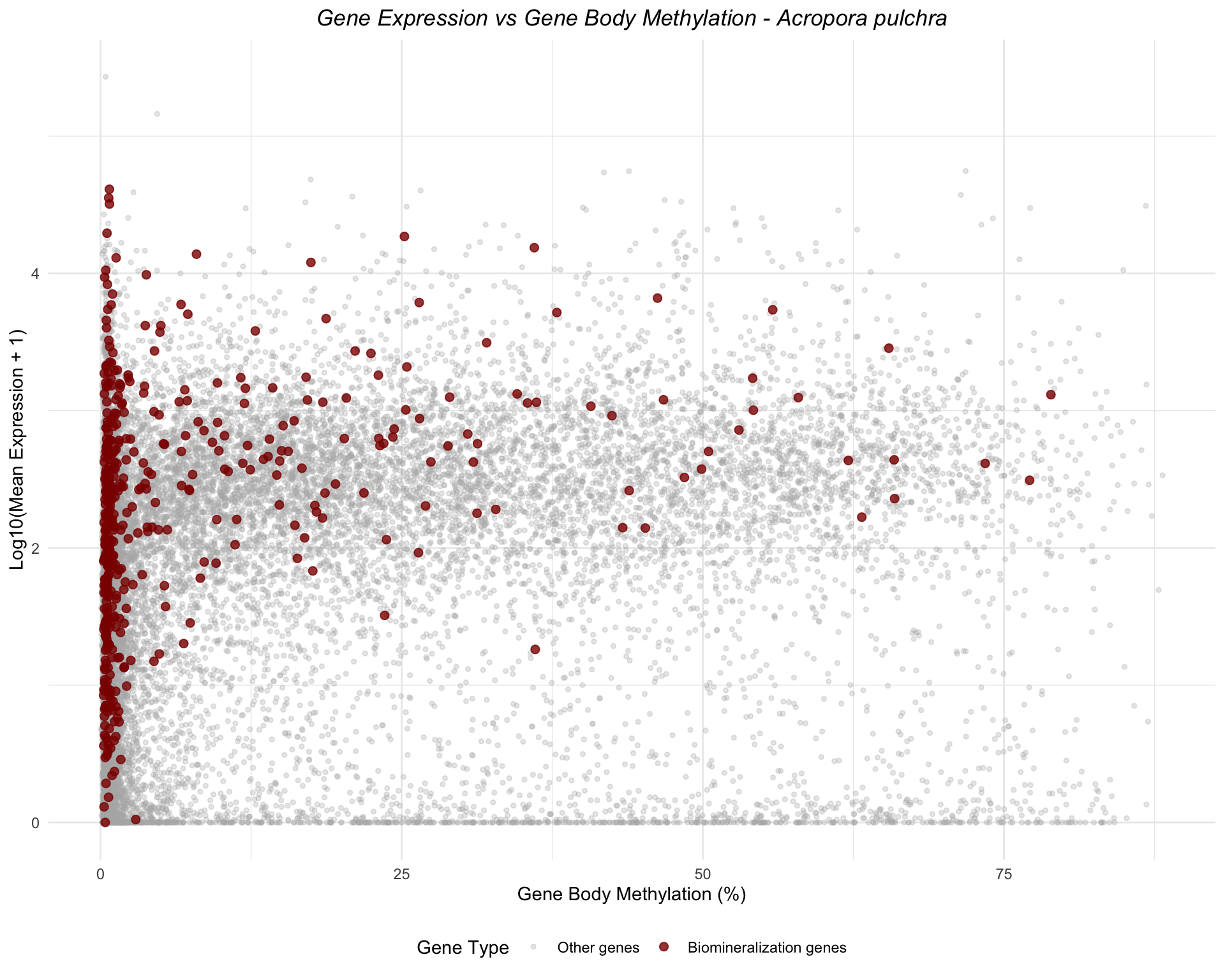

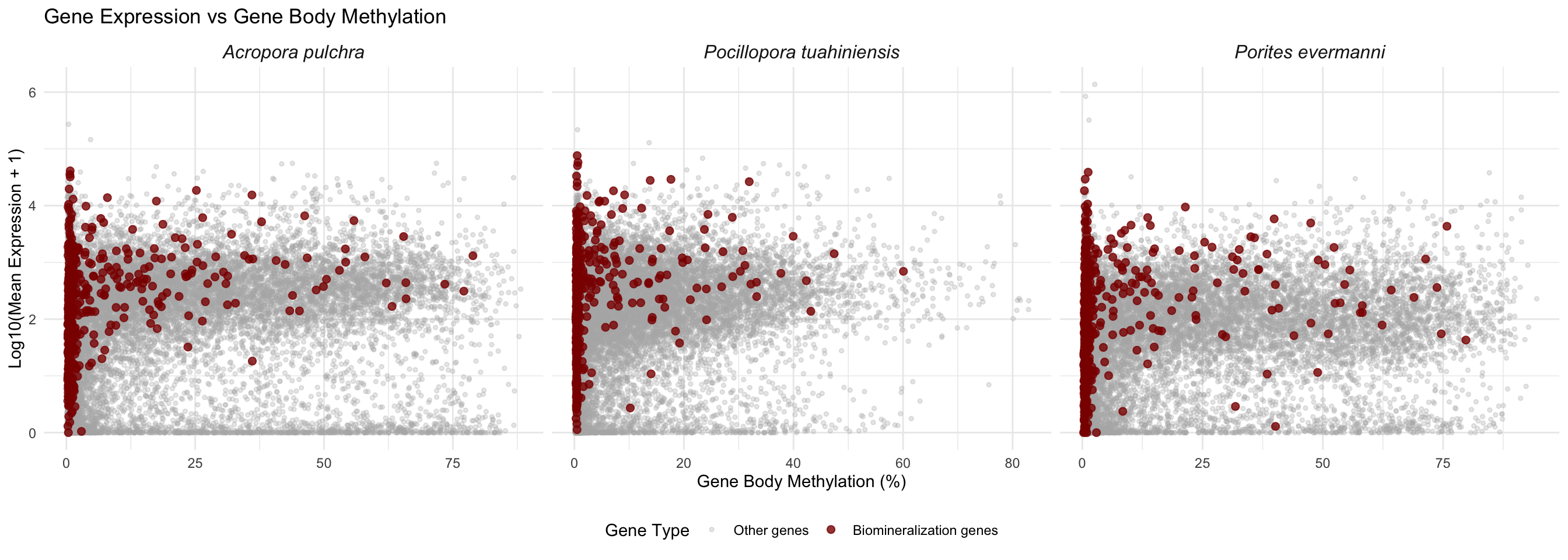

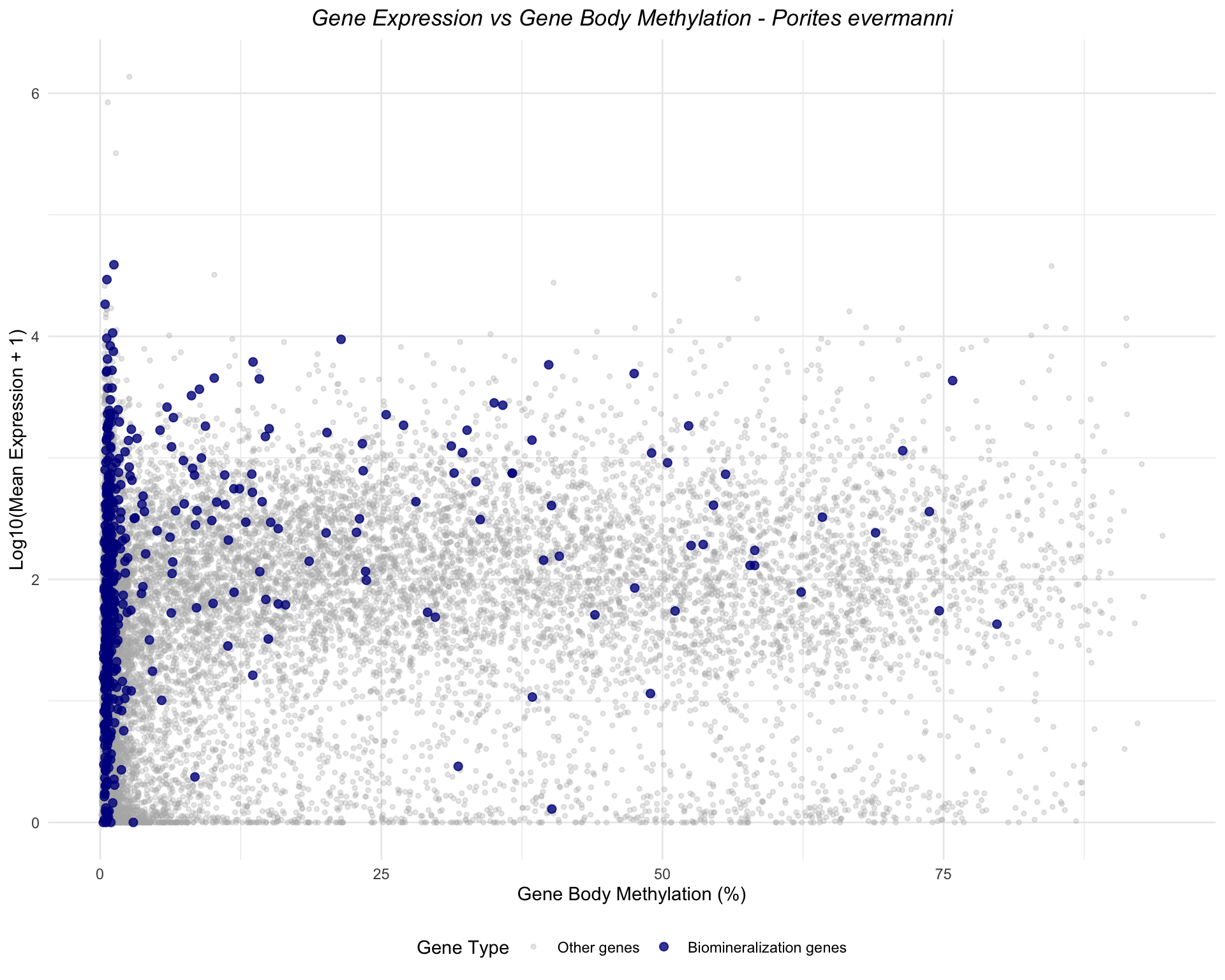

This script creates x-y plots of gene expression versus gene body methylation for three coral species: - Acropora pulchra - Porites evermanni - Pocillopora tuahiniensis

Biomineralization genes are highlighted in each plot.

Load Libraries

library(tidyverse)

Load Data

Gene Expression Count Matrices

# Acropora pulchra
apul_expression <- read_csv("https://gannet.fish.washington.edu/gitrepos/urol-e5/timeseries_molecular/D-Apul/output/02.20-D-Apul-RNAseq-alignment-HiSat2/apul-gene_count_matrix.csv")

# Porites evermanni
peve_expression <- read_csv("https://gannet.fish.washington.edu/gitrepos/urol-e5/timeseries_molecular/E-Peve/output/02.20-E-Peve-RNAseq-alignment-HiSat2/peve-gene_count_matrix.csv")

# Pocillopora tuahiniensis
ptua_expression <- read_csv("https://gannet.fish.washington.edu/gitrepos/urol-e5/timeseries_molecular/F-Ptua/output/02.20-F-Ptua-RNAseq-alignment-HiSat2/ptua-gene_count_matrix.csv")

Gene Body Methylation Data

# Acropora pulchra
apul_methylation <- read_tsv("https://raw.githubusercontent.com/urol-e5/timeseries-molecular-calcification/refs/heads/main/D-Apul/output/40-Apul-Gene-Methylation/Apul-gene-methylation_75pct.tsv")

# Porites evermanni
peve_methylation <- read_tsv("https://raw.githubusercontent.com/urol-e5/timeseries-molecular-calcification/refs/heads/main/E-Peve/output/15-Peve-Gene-Methylation/Peve-gene-methylation_75pct.tsv")

# Pocillopora tuahiniensis
ptua_methylation <- read_tsv("https://raw.githubusercontent.com/urol-e5/timeseries-molecular-calcification/refs/heads/main/F-Ptua/output/09-Ptua-Gene-Methylation/Ptua-gene-methylation_75pct.tsv")

Biomineralization Gene Lists

# Acropora pulchra
apul_biomin <- read_csv("https://raw.githubusercontent.com/urol-e5/timeseries-molecular-calcification/refs/heads/main/M-multi-species/output/33-biomin-pathway-counts/apul_biomin_counts.csv")

# Porites evermanni
peve_biomin <- read_csv("https://raw.githubusercontent.com/urol-e5/timeseries-molecular-calcification/refs/heads/main/M-multi-species/output/33-biomin-pathway-counts/peve_biomin_counts.csv")

# Pocillopora tuahiniensis
ptua_biomin <- read_csv("https://raw.githubusercontent.com/urol-e5/timeseries-molecular-calcification/refs/heads/main/M-multi-species/output/33-biomin-pathway-counts/ptua_biomin_counts.csv")

Data Preview

# Preview expression data structure
head(apul_expression)
# A tibble: 6 × 41
  gene_id  `ACR-139-TP1` `ACR-139-TP2` `ACR-139-TP3` `ACR-139-TP4` `ACR-145-TP1`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 FUN_002…             3             2             3             4            12
2 FUN_002…             0             1             0             0             0
3 FUN_002…             0             0             0             0             0
4 FUN_002…            10             5            10            10            23
5 FUN_002…             2             1             1             2             2
6 FUN_002…            12             7            10            10            26
# ℹ 35 more variables: `ACR-145-TP2` <dbl>, `ACR-145-TP3` <dbl>,
#   `ACR-145-TP4` <dbl>, `ACR-150-TP1` <dbl>, `ACR-150-TP2` <dbl>,
#   `ACR-150-TP3` <dbl>, `ACR-150-TP4` <dbl>, `ACR-173-TP1` <dbl>,
#   `ACR-173-TP2` <dbl>, `ACR-173-TP3` <dbl>, `ACR-173-TP4` <dbl>,
#   `ACR-186-TP1` <dbl>, `ACR-186-TP2` <dbl>, `ACR-186-TP3` <dbl>,
#   `ACR-186-TP4` <dbl>, `ACR-225-TP1` <dbl>, `ACR-225-TP2` <dbl>,
#   `ACR-225-TP3` <dbl>, `ACR-225-TP4` <dbl>, `ACR-229-TP1` <dbl>, …
head(peve_expression)
# A tibble: 6 × 39
  gene_id  `POR-216-TP1` `POR-216-TP2` `POR-216-TP3` `POR-216-TP4` `POR-236-TP1`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 gene-Pe…            29            75            63            25            82
2 gene-Pe…             0             1             0             1             0
3 gene-Pe…             0             0             0             0             0
4 gene-Pe…            13            13             0             0             0
5 gene-Pe…           105           114           164             6            16
6 gene-Pe…             2             0             0             1             0
# ℹ 33 more variables: `POR-236-TP2` <dbl>, `POR-245-TP1` <dbl>,
#   `POR-245-TP2` <dbl>, `POR-245-TP3` <dbl>, `POR-245-TP4` <dbl>,
#   `POR-260-TP1` <dbl>, `POR-260-TP2` <dbl>, `POR-260-TP3` <dbl>,
#   `POR-260-TP4` <dbl>, `POR-262-TP1` <dbl>, `POR-262-TP2` <dbl>,
#   `POR-262-TP3` <dbl>, `POR-262-TP4` <dbl>, `POR-69-TP1` <dbl>,
#   `POR-69-TP2` <dbl>, `POR-69-TP3` <dbl>, `POR-69-TP4` <dbl>,
#   `POR-72-TP1` <dbl>, `POR-72-TP2` <dbl>, `POR-72-TP3` <dbl>, …
head(ptua_expression)
# A tibble: 6 × 40
  gene_id  `POC-201-TP1` `POC-201-TP2` `POC-201-TP3` `POC-219-TP1` `POC-219-TP2`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 gene-Po…            54           170            18           168            31
2 gene-Po…           957           759           143           757           446
3 gene-Po…           249           452           381           501           218
4 gene-Po…           365           191            13            73            64
5 gene-Po…           187           435           137           754           332
6 gene-Po…           379           602           138           561           389
# ℹ 34 more variables: `POC-219-TP3` <dbl>, `POC-219-TP4` <dbl>,
#   `POC-222-TP1` <dbl>, `POC-222-TP2` <dbl>, `POC-222-TP3` <dbl>,
#   `POC-222-TP4` <dbl>, `POC-255-TP1` <dbl>, `POC-255-TP2` <dbl>,
#   `POC-255-TP3` <dbl>, `POC-255-TP4` <dbl>, `POC-259-TP1` <dbl>,
#   `POC-259-TP2` <dbl>, `POC-259-TP3` <dbl>, `POC-259-TP4` <dbl>,
#   `POC-40-TP1` <dbl>, `POC-40-TP2` <dbl>, `POC-40-TP3` <dbl>,
#   `POC-40-TP4` <dbl>, `POC-42-TP1` <dbl>, `POC-42-TP2` <dbl>, …
# Preview methylation data structure
head(apul_methylation)
# A tibble: 6 × 41
  gene_id  `ACR-139-TP1` `ACR-139-TP2` `ACR-139-TP3` `ACR-139-TP4` `ACR-145-TP1`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 FUN_000…         2.16          1.23          0.491        1.34           0.649
2 FUN_000…         2.36          1.63          1.19         1.58           0.948
3 FUN_000…         0.179         0.648         0.183        0.0801         0.939
4 FUN_000…         0             0.222         0            0             NA
5 FUN_000…         0.5           0.231         0            0              0
6 FUN_000…        54.8          58.2          54.0         66.5           45.8
# ℹ 35 more variables: `ACR-145-TP2` <dbl>, `ACR-145-TP3` <dbl>,
#   `ACR-145-TP4` <dbl>, `ACR-150-TP1` <dbl>, `ACR-150-TP2` <dbl>,
#   `ACR-150-TP3` <dbl>, `ACR-150-TP4` <dbl>, `ACR-173-TP1` <dbl>,
#   `ACR-173-TP2` <dbl>, `ACR-173-TP3` <dbl>, `ACR-173-TP4` <dbl>,
#   `ACR-186-TP1` <dbl>, `ACR-186-TP2` <dbl>, `ACR-186-TP3` <dbl>,
#   `ACR-186-TP4` <dbl>, `ACR-225-TP1` <dbl>, `ACR-225-TP2` <dbl>,
#   `ACR-225-TP3` <dbl>, `ACR-225-TP4` <dbl>, `ACR-229-TP1` <dbl>, …
head(peve_methylation)
# A tibble: 6 × 38
  gene_id  `POR-216-TP1` `POR-216-TP2` `POR-216-TP3` `POR-216-TP4` `POR-236-TP1`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 gene-Pe…         0.773         0.171         0.422         0.307        0.0893
2 gene-Pe…         0.400         0.485         0.873         0.670        0.775
3 gene-Pe…         0.492         0.535         0.793         0.386        0.554
4 gene-Pe…         2.21          0.487         1.01          4.62         1.91
5 gene-Pe…        27.0          29.8          29.0          33.1          8.23
6 gene-Pe…        12.7          19.2          19.0          22.5         21.6
# ℹ 32 more variables: `POR-236-TP2` <dbl>, `POR-245-TP1` <dbl>,
#   `POR-245-TP2` <dbl>, `POR-245-TP3` <dbl>, `POR-245-TP4` <dbl>,
#   `POR-260-TP1` <dbl>, `POR-260-TP2` <dbl>, `POR-260-TP3` <dbl>,
#   `POR-260-TP4` <dbl>, `POR-262-TP1` <dbl>, `POR-262-TP2` <dbl>,
#   `POR-262-TP3` <dbl>, `POR-262-TP4` <dbl>, `POR-69-TP1` <dbl>,
#   `POR-69-TP2` <dbl>, `POR-69-TP3` <dbl>, `POR-69-TP4` <dbl>,
#   `POR-72-TP1` <dbl>, `POR-72-TP2` <dbl>, `POR-72-TP3` <dbl>, …
head(ptua_methylation)
# A tibble: 6 × 33
  gene_id  `POC-201-TP1` `POC-201-TP2` `POC-219-TP1` `POC-219-TP2` `POC-219-TP3`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 gene-Po…        55.9          65            NA           56.7           70.8
2 gene-Po…        62.1          64.3          57.9         58.0           63.0
3 gene-Po…        21.6          23.3          24.0         18.2           22.6
4 gene-Po…         0.281         0.146         0.433        0.159          0.338
5 gene-Po…         0.301         0             0            0.0916         0.394
6 gene-Po…         9.58          8.64          7.63         7.43           7.72
# ℹ 27 more variables: `POC-219-TP4` <dbl>, `POC-222-TP1` <dbl>,
#   `POC-222-TP3` <dbl>, `POC-222-TP4` <dbl>, `POC-255-TP1` <dbl>,
#   `POC-255-TP2` <dbl>, `POC-255-TP3` <dbl>, `POC-259-TP1` <dbl>,
#   `POC-259-TP2` <dbl>, `POC-40-TP1` <dbl>, `POC-40-TP2` <dbl>,
#   `POC-40-TP3` <dbl>, `POC-40-TP4` <dbl>, `POC-42-TP2` <dbl>,
#   `POC-42-TP4` <dbl>, `POC-52-TP1` <dbl>, `POC-52-TP2` <dbl>,
#   `POC-52-TP3` <dbl>, `POC-52-TP4` <dbl>, `POC-53-TP1` <dbl>, …
# Preview biomin gene lists
head(apul_biomin)
# A tibble: 6 × 42
  group_id gene_id    `ACR-139-TP1` `ACR-139-TP2` `ACR-139-TP3` `ACR-139-TP4`
  <chr>    <chr>              <dbl>         <dbl>         <dbl>         <dbl>
1 OG_13910 FUN_002435         16875         28318         32788         51133
2 OG_10516 FUN_002646            82            10           437           209
3 OG_13916 FUN_002648            75            67           101            67
4 OG_10520 FUN_002663            43             0             0            12
5 OG_10522 FUN_002671             7             4            17             0
6 OG_10523 FUN_002672          4618          3317          1903          2991
# ℹ 36 more variables: `ACR-145-TP1` <dbl>, `ACR-145-TP2` <dbl>,
#   `ACR-145-TP3` <dbl>, `ACR-145-TP4` <dbl>, `ACR-150-TP1` <dbl>,
#   `ACR-150-TP2` <dbl>, `ACR-150-TP3` <dbl>, `ACR-150-TP4` <dbl>,
#   `ACR-173-TP1` <dbl>, `ACR-173-TP2` <dbl>, `ACR-173-TP3` <dbl>,
#   `ACR-173-TP4` <dbl>, `ACR-186-TP1` <dbl>, `ACR-186-TP2` <dbl>,
#   `ACR-186-TP3` <dbl>, `ACR-186-TP4` <dbl>, `ACR-225-TP1` <dbl>,
#   `ACR-225-TP2` <dbl>, `ACR-225-TP3` <dbl>, `ACR-225-TP4` <dbl>, …
head(peve_biomin)
# A tibble: 6 × 40
  group_id gene_id       `POR-216-TP1` `POR-216-TP2` `POR-216-TP3` `POR-216-TP4`
  <chr>    <chr>                 <dbl>         <dbl>         <dbl>         <dbl>
1 OG_08920 Peve_00000077          2201          1336           752           667
2 OG_08914 Peve_00000084            63            24            26            29
3 OG_12248 Peve_00013346             7            35             0             8
4 OG_11296 Peve_00022433             0            26             3             9
5 OG_03289 Peve_00022425             5            15             6             0
6 OG_03288 Peve_00022430            27            12             0             8
# ℹ 34 more variables: `POR-236-TP1` <dbl>, `POR-236-TP2` <dbl>,
#   `POR-245-TP1` <dbl>, `POR-245-TP2` <dbl>, `POR-245-TP3` <dbl>,
#   `POR-245-TP4` <dbl>, `POR-260-TP1` <dbl>, `POR-260-TP2` <dbl>,
#   `POR-260-TP3` <dbl>, `POR-260-TP4` <dbl>, `POR-262-TP1` <dbl>,
#   `POR-262-TP2` <dbl>, `POR-262-TP3` <dbl>, `POR-262-TP4` <dbl>,
#   `POR-69-TP1` <dbl>, `POR-69-TP2` <dbl>, `POR-69-TP3` <dbl>,
#   `POR-69-TP4` <dbl>, `POR-72-TP1` <dbl>, `POR-72-TP2` <dbl>, …
head(ptua_biomin)
# A tibble: 6 × 41
  group_id gene_id       `POC-201-TP1` `POC-201-TP2` `POC-201-TP3` `POC-219-TP1`
  <chr>    <chr>                 <dbl>         <dbl>         <dbl>         <dbl>
1 OG_02619 Pocillopora_…            69            15             0            56
2 OG_02666 Pocillopora_…          5719           382           434           564
3 OG_03673 Pocillopora_…          1379           986           298           491
4 OG_03671 Pocillopora_…            12           827           286            35
5 OG_02537 Pocillopora_…            27            56             0            23
6 OG_17556 Pocillopora_…            11            12             0             4
# ℹ 35 more variables: `POC-219-TP2` <dbl>, `POC-219-TP3` <dbl>,
#   `POC-219-TP4` <dbl>, `POC-222-TP1` <dbl>, `POC-222-TP2` <dbl>,
#   `POC-222-TP3` <dbl>, `POC-222-TP4` <dbl>, `POC-255-TP1` <dbl>,
#   `POC-255-TP2` <dbl>, `POC-255-TP3` <dbl>, `POC-255-TP4` <dbl>,
#   `POC-259-TP1` <dbl>, `POC-259-TP2` <dbl>, `POC-259-TP3` <dbl>,
#   `POC-259-TP4` <dbl>, `POC-40-TP1` <dbl>, `POC-40-TP2` <dbl>,
#   `POC-40-TP3` <dbl>, `POC-40-TP4` <dbl>, `POC-42-TP1` <dbl>, …

Prepare Data for Plotting

Acropora pulchra

# Calculate mean expression across samples for each gene
apul_expression_mean <- apul_expression %>%
  pivot_longer(-gene_id, names_to = "sample", values_to = "count") %>%
  group_by(gene_id) %>%
  summarize(mean_expression = mean(count, na.rm = TRUE)) %>%
  mutate(log_expression = log10(mean_expression + 1))

# Calculate mean methylation across samples for each gene
apul_methylation_mean <- apul_methylation %>%
  pivot_longer(-gene_id, names_to = "sample", values_to = "methylation") %>%
  group_by(gene_id) %>%
  summarize(mean_methylation = mean(methylation, na.rm = TRUE))

# Join expression and methylation data
apul_combined <- apul_expression_mean %>%
  inner_join(apul_methylation_mean, by = "gene_id")

# Get biomin gene IDs from the gene_id column (second column)
apul_biomin_genes <- apul_biomin %>%
  pull(gene_id) %>%
  unique()

# Check how many biomin genes we have
cat("Number of biomin genes:", length(apul_biomin_genes), "\n")
Number of biomin genes: 505
cat("Sample biomin gene IDs:\n")
Sample biomin gene IDs:
head(apul_biomin_genes)
[1] "FUN_002435" "FUN_002646" "FUN_002648" "FUN_002663" "FUN_002671"
[6] "FUN_002672"
# Check for matches
cat("\nNumber of matches in combined data:", sum(apul_combined$gene_id %in% apul_biomin_genes), "\n")

Number of matches in combined data: 485
# Add biomin indicator
apul_combined <- apul_combined %>%
  mutate(is_biomin = gene_id %in% apul_biomin_genes)

head(apul_combined)
# A tibble: 6 × 5
  gene_id    mean_expression log_expression mean_methylation is_biomin
  <chr>                <dbl>          <dbl>            <dbl> <lgl>
1 FUN_000184        1836.            3.26              1.45  FALSE
2 FUN_000185        1545.            3.19              1.47  FALSE
3 FUN_000186          53.4           1.74              0.462 FALSE
4 FUN_000187           0.3           0.114             0.250 FALSE
5 FUN_000188           0.225         0.0881            0.428 FALSE
6 FUN_000189        1624.            3.21             54.6   FALSE
table(apul_combined$is_biomin)

FALSE  TRUE
21136   485

Porites evermanni

# Calculate mean expression across samples for each gene
peve_expression_mean <- peve_expression %>%
  pivot_longer(-gene_id, names_to = "sample", values_to = "count") %>%
  group_by(gene_id) %>%
  summarize(mean_expression = mean(count, na.rm = TRUE)) %>%
  mutate(log_expression = log10(mean_expression + 1))

# Calculate mean methylation across samples for each gene
peve_methylation_mean <- peve_methylation %>%
  pivot_longer(-gene_id, names_to = "sample", values_to = "methylation") %>%
  group_by(gene_id) %>%
  summarize(mean_methylation = mean(methylation, na.rm = TRUE))

# Join expression and methylation data
peve_combined <- peve_expression_mean %>%
  inner_join(peve_methylation_mean, by = "gene_id")

# Get biomin gene IDs - add "gene-" prefix to match expression data format
peve_biomin_genes <- peve_biomin %>%
  pull(gene_id) %>%
  unique() %>%
  paste0("gene-", .)

# Check how many biomin genes we have
cat("Number of biomin genes:", length(peve_biomin_genes), "\n")
Number of biomin genes: 565
cat("Sample biomin gene IDs (with prefix):\n")
Sample biomin gene IDs (with prefix):
head(peve_biomin_genes)
[1] "gene-Peve_00000077" "gene-Peve_00000084" "gene-Peve_00013346"
[4] "gene-Peve_00022433" "gene-Peve_00022425" "gene-Peve_00022430"
cat("\nSample expression gene IDs:\n")

Sample expression gene IDs:
head(peve_combined$gene_id)
[1] "gene-Peve_00000002" "gene-Peve_00000003" "gene-Peve_00000004"
[4] "gene-Peve_00000005" "gene-Peve_00000006" "gene-Peve_00000007"
cat("\nNumber of matches in combined data:", sum(peve_combined$gene_id %in% peve_biomin_genes), "\n")

Number of matches in combined data: 483
# Add biomin indicator
peve_combined <- peve_combined %>%
  mutate(is_biomin = gene_id %in% peve_biomin_genes)

head(peve_combined)
# A tibble: 6 × 5
  gene_id            mean_expression log_expression mean_methylation is_biomin
  <chr>                        <dbl>          <dbl>            <dbl> <lgl>
1 gene-Peve_00000002            5.74          0.828             54.6 FALSE
2 gene-Peve_00000003           56.1           1.76              56.4 FALSE
3 gene-Peve_00000004          212.            2.33              56.8 FALSE
4 gene-Peve_00000005          173.            2.24              64.7 FALSE
5 gene-Peve_00000006         2229.            3.35              62.7 FALSE
6 gene-Peve_00000007          142.            2.15              70.1 FALSE
table(peve_combined$is_biomin)

FALSE  TRUE
20341   483

Pocillopora tuahiniensis

# Calculate mean expression across samples for each gene
ptua_expression_mean <- ptua_expression %>%
  pivot_longer(-gene_id, names_to = "sample", values_to = "count") %>%
  group_by(gene_id) %>%
  summarize(mean_expression = mean(count, na.rm = TRUE)) %>%
  mutate(log_expression = log10(mean_expression + 1))

# Calculate mean methylation across samples for each gene
ptua_methylation_mean <- ptua_methylation %>%
  pivot_longer(-gene_id, names_to = "sample", values_to = "methylation") %>%
  group_by(gene_id) %>%
  summarize(mean_methylation = mean(methylation, na.rm = TRUE))

# Join expression and methylation data
ptua_combined <- ptua_expression_mean %>%
  inner_join(ptua_methylation_mean, by = "gene_id")

# Get biomin gene IDs - need to add "gene-" prefix to match expression data format
# Biomin IDs: Pocillopora_meandrina_HIv1___RNAseq.g21004.t1
# Expression IDs: gene-Pocillopora_meandrina_HIv1___RNAseq.g20905.t1
ptua_biomin_genes <- ptua_biomin %>%
  pull(gene_id) %>%
  unique() %>%
  paste0("gene-", .)

# Check how many biomin genes we have
cat("Number of biomin genes:", length(ptua_biomin_genes), "\n")
Number of biomin genes: 483
cat("Sample biomin gene IDs (with prefix):\n")
Sample biomin gene IDs (with prefix):
head(ptua_biomin_genes)
[1] "gene-Pocillopora_meandrina_HIv1___TS.g25680.t1b"
[2] "gene-Pocillopora_meandrina_HIv1___RNAseq.g21004.t1"
[3] "gene-Pocillopora_meandrina_HIv1___RNAseq.g21081.t1"
[4] "gene-Pocillopora_meandrina_HIv1___RNAseq.g21079.t1"
[5] "gene-Pocillopora_meandrina_HIv1___TS.g26115.t1"
[6] "gene-Pocillopora_meandrina_HIv1___RNAseq.g21507.t1"
cat("\nSample expression gene IDs:\n")

Sample expression gene IDs:
head(ptua_combined$gene_id)
[1] "gene-Pocillopora_meandrina_HIv1___RNAseq.10273_t"
[2] "gene-Pocillopora_meandrina_HIv1___RNAseq.10316_t"
[3] "gene-Pocillopora_meandrina_HIv1___RNAseq.10483_t"
[4] "gene-Pocillopora_meandrina_HIv1___RNAseq.10568_t"
[5] "gene-Pocillopora_meandrina_HIv1___RNAseq.10682_t"
[6] "gene-Pocillopora_meandrina_HIv1___RNAseq.10925_t"
cat("\nNumber of matches in combined data:", sum(ptua_combined$gene_id %in% ptua_biomin_genes), "\n")

Number of matches in combined data: 459
# Add biomin indicator
ptua_combined <- ptua_combined %>%
  mutate(is_biomin = gene_id %in% ptua_biomin_genes)

head(ptua_combined)
# A tibble: 6 × 5
  gene_id              mean_expression log_expression mean_methylation is_biomin
  <chr>                          <dbl>          <dbl>            <dbl> <lgl>
1 gene-Pocillopora_me…            25.3           1.42            1.03  FALSE
2 gene-Pocillopora_me…           109.            2.04            0.421 FALSE
3 gene-Pocillopora_me…          1700.            3.23            2.72  FALSE
4 gene-Pocillopora_me…           565.            2.75            0.474 FALSE
5 gene-Pocillopora_me…            30.1           1.49            0.357 FALSE
6 gene-Pocillopora_me…           980.            2.99            4.05  FALSE
table(ptua_combined$is_biomin)

FALSE  TRUE
22910   459

Create Plots

Acropora pulchra

ggplot(apul_combined, aes(x = mean_methylation, y = log_expression, color = is_biomin)) +
  geom_point(data = filter(apul_combined, !is_biomin), alpha = 0.3, size = 1) +
  geom_point(data = filter(apul_combined, is_biomin), alpha = 0.8, size = 2) +
  scale_color_manual(values = c("FALSE" = "gray70", "TRUE" = "darkred"),
                     labels = c("FALSE" = "Other genes", "TRUE" = "Biomineralization genes"),
                     name = "Gene Type") +
  labs(title = "Gene Expression vs Gene Body Methylation - Acropora pulchra",
       x = "Gene Body Methylation (%)",
       y = "Log10(Mean Expression + 1)") +
  theme_minimal() +
  theme(legend.position = "bottom",
        plot.title = element_text(face = "italic", hjust = 0.5))

Porites evermanni

ggplot(peve_combined, aes(x = mean_methylation, y = log_expression, color = is_biomin)) +
  geom_point(data = filter(peve_combined, !is_biomin), alpha = 0.3, size = 1) +
  geom_point(data = filter(peve_combined, is_biomin), alpha = 0.8, size = 2) +
  scale_color_manual(values = c("FALSE" = "gray70", "TRUE" = "darkblue"),
                     labels = c("FALSE" = "Other genes", "TRUE" = "Biomineralization genes"),
                     name = "Gene Type") +
  labs(title = "Gene Expression vs Gene Body Methylation - Porites evermanni",
       x = "Gene Body Methylation (%)",
       y = "Log10(Mean Expression + 1)") +
  theme_minimal() +
  theme(legend.position = "bottom",
        plot.title = element_text(face = "italic", hjust = 0.5))

Pocillopora tuahiniensis

ggplot(ptua_combined, aes(x = mean_methylation, y = log_expression, color = is_biomin)) +
  geom_point(data = filter(ptua_combined, !is_biomin), alpha = 0.3, size = 1) +
  geom_point(data = filter(ptua_combined, is_biomin), alpha = 0.8, size = 2) +
  scale_color_manual(values = c("FALSE" = "gray70", "TRUE" = "darkgreen"),
                     labels = c("FALSE" = "Other genes", "TRUE" = "Biomineralization genes"),
                     name = "Gene Type") +
  labs(title = "Gene Expression vs Gene Body Methylation - Pocillopora tuahiniensis",
       x = "Gene Body Methylation (%)",
       y = "Log10(Mean Expression + 1)") +
  theme_minimal() +
  theme(legend.position = "bottom",
        plot.title = element_text(face = "italic", hjust = 0.5))

Combined Panel Plot

# Add species identifier to each dataset
apul_combined <- apul_combined %>% mutate(species = "Acropora pulchra")
peve_combined <- peve_combined %>% mutate(species = "Porites evermanni")
ptua_combined <- ptua_combined %>% mutate(species = "Pocillopora tuahiniensis")

# Combine all data
all_combined <- bind_rows(apul_combined, peve_combined, ptua_combined)

# Create faceted plot
ggplot(all_combined, aes(x = mean_methylation, y = log_expression, color = is_biomin)) +
  geom_point(data = filter(all_combined, !is_biomin), alpha = 0.3, size = 1) +
  geom_point(data = filter(all_combined, is_biomin), alpha = 0.8, size = 2) +
  scale_color_manual(values = c("FALSE" = "gray70", "TRUE" = "darkred"),
                     labels = c("FALSE" = "Other genes", "TRUE" = "Biomineralization genes"),
                     name = "Gene Type") +
  facet_wrap(~species, scales = "free_x") +
  labs(title = "Gene Expression vs Gene Body Methylation",
       x = "Gene Body Methylation (%)",
       y = "Log10(Mean Expression + 1)") +
  theme_minimal() +
  theme(legend.position = "bottom",
        strip.text = element_text(face = "italic", size = 12))

Summary Statistics

# Summary for each species
summary_stats <- all_combined %>%
  group_by(species, is_biomin) %>%
  summarize(
    n_genes = n(),
    avg_methylation = mean(mean_methylation, na.rm = TRUE),
    sd_methylation = sd(mean_methylation, na.rm = TRUE),
    avg_expression = mean(log_expression, na.rm = TRUE),
    sd_expression = sd(log_expression, na.rm = TRUE),
    .groups = "drop"
  )

summary_stats %>%
  knitr::kable(digits = 3,
               col.names = c("Species", "Biomin Gene", "N", "Mean Meth", "SD Meth", "Mean Expr", "SD Expr"))
Species Biomin Gene N Mean Meth SD Meth Mean Expr SD Expr
Acropora pulchra FALSE 21136 15.675 20.938 1.782 0.999
Acropora pulchra TRUE 485 7.052 13.575 2.250 0.855
Pocillopora tuahiniensis FALSE 22910 7.470 11.702 1.788 0.956
Pocillopora tuahiniensis TRUE 459 3.735 7.958 2.406 0.906
Porites evermanni FALSE 20341 14.836 21.847 1.425 0.923
Porites evermanni TRUE 483 6.711 14.332 1.974 0.930

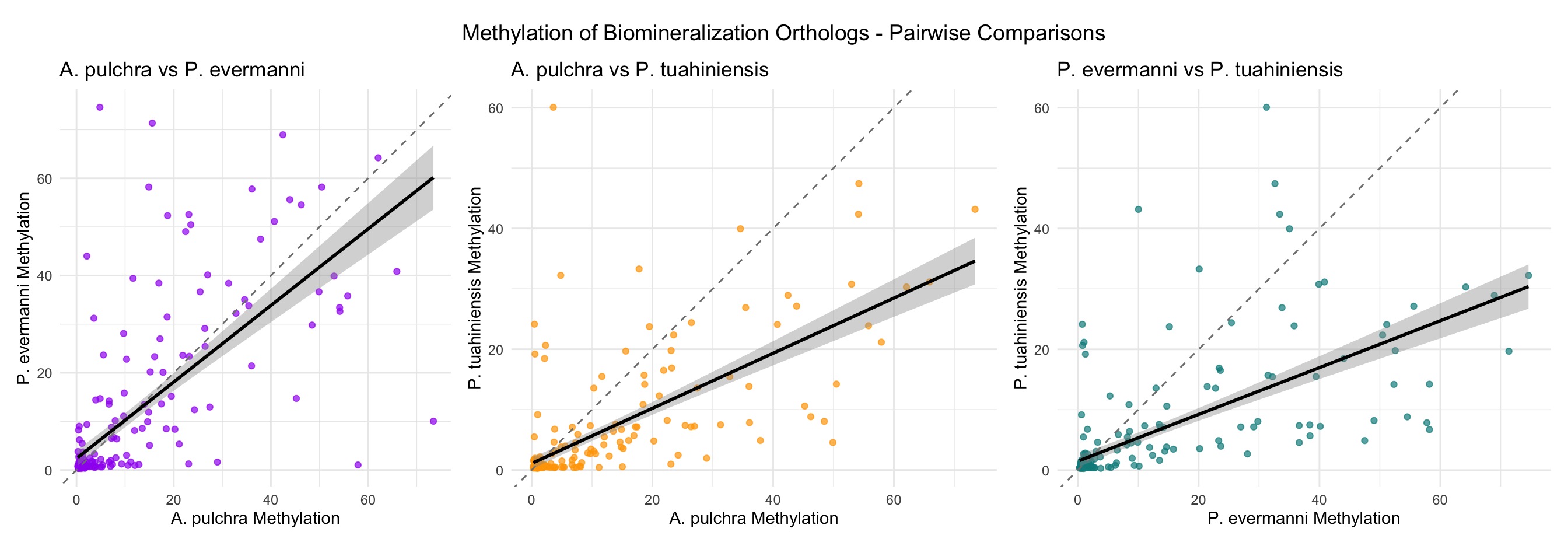

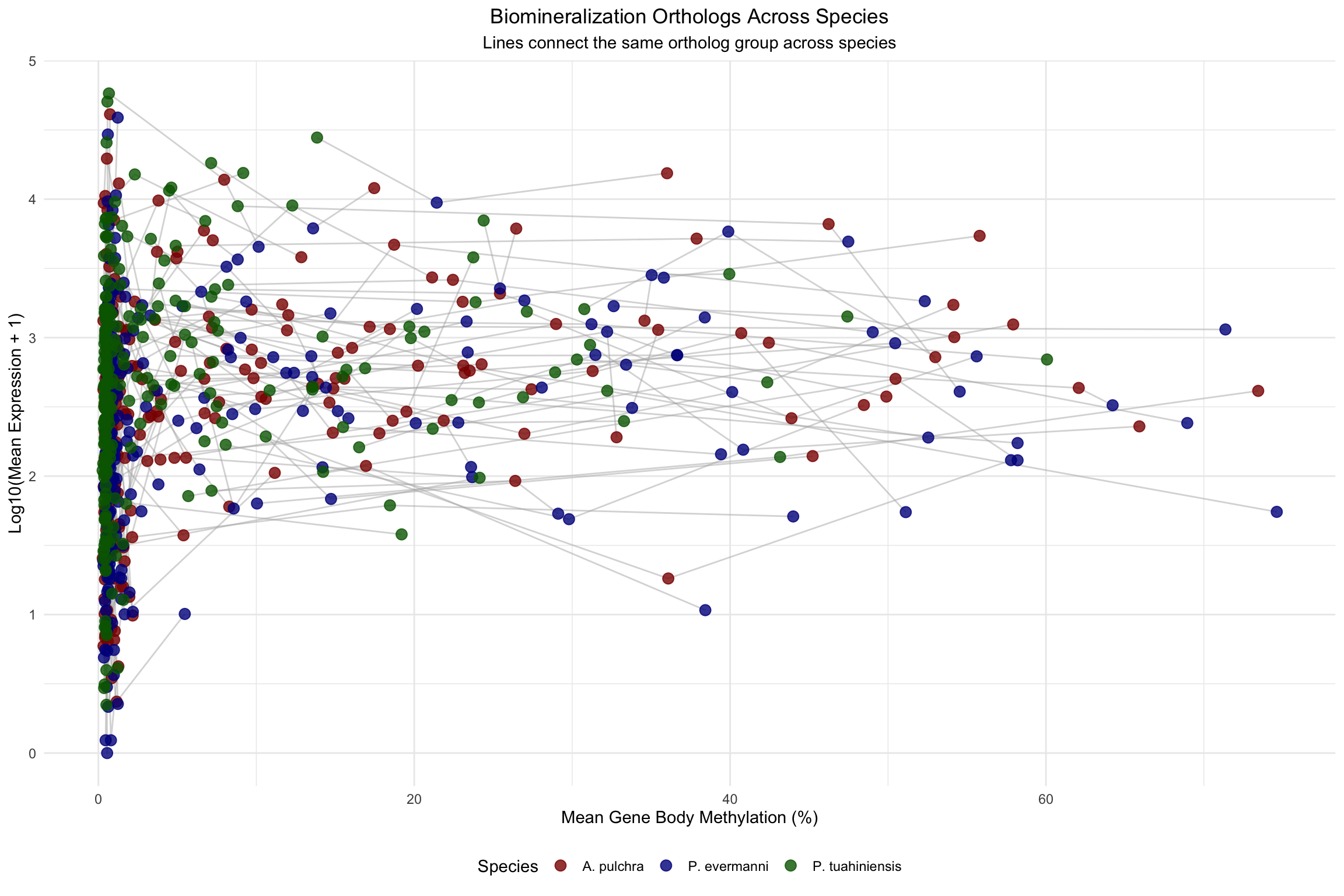

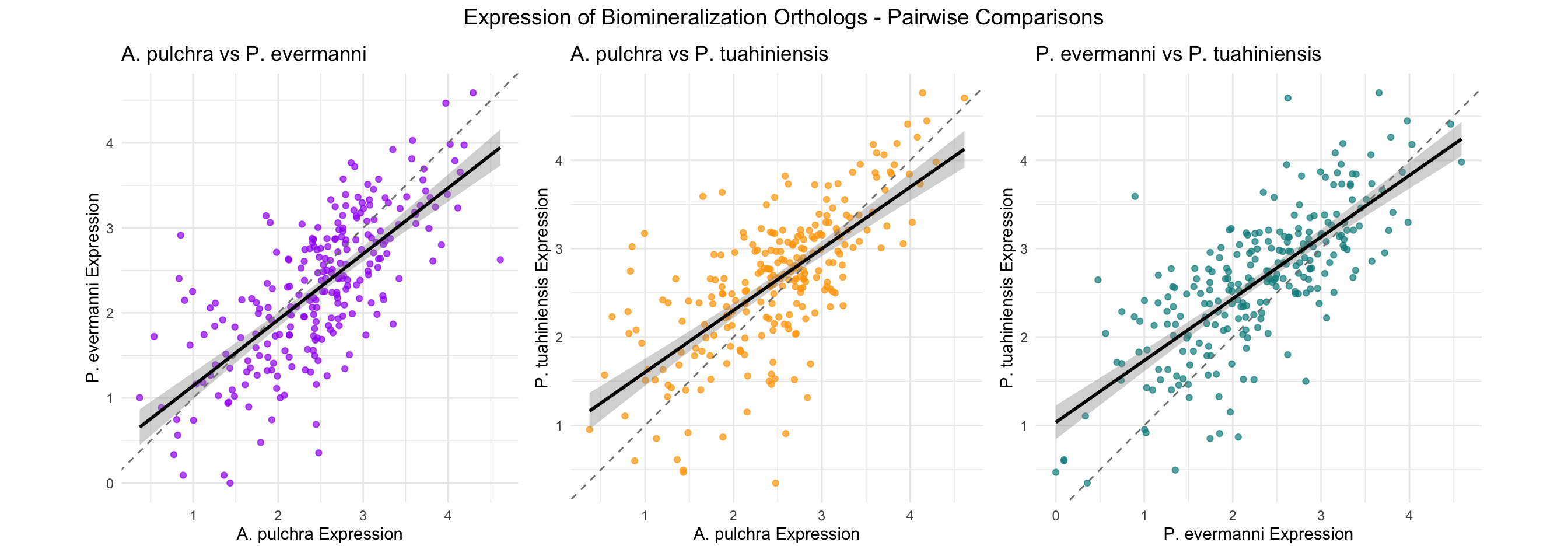

Ortholog Comparison Across Species

This section compares biomineralization orthologs (same group_id) across the three species.

# Create biomin data with expression and methylation for each species
# Include group_id for ortholog matching

# Acropora pulchra biomin with expression/methylation
apul_biomin_data <- apul_biomin %>%
  select(group_id, gene_id) %>%
  inner_join(apul_expression_mean, by = "gene_id") %>%
  inner_join(apul_methylation_mean, by = "gene_id") %>%
  mutate(species = "A. pulchra") %>%
  select(group_id, gene_id, species, mean_expression, log_expression, mean_methylation)

# Porites evermanni biomin with expression/methylation
# Need to add "gene-" prefix for matching
peve_biomin_data <- peve_biomin %>%
  select(group_id, gene_id) %>%
  mutate(gene_id_match = paste0("gene-", gene_id)) %>%
  inner_join(peve_expression_mean, by = c("gene_id_match" = "gene_id")) %>%
  inner_join(peve_methylation_mean, by = c("gene_id_match" = "gene_id")) %>%
  mutate(species = "P. evermanni") %>%
  select(group_id, gene_id = gene_id_match, species, mean_expression, log_expression, mean_methylation)

# Pocillopora tuahiniensis biomin with expression/methylation
# Need to add "gene-" prefix for matching
ptua_biomin_data <- ptua_biomin %>%
  select(group_id, gene_id) %>%
  mutate(gene_id_match = paste0("gene-", gene_id)) %>%
  inner_join(ptua_expression_mean, by = c("gene_id_match" = "gene_id")) %>%
  inner_join(ptua_methylation_mean, by = c("gene_id_match" = "gene_id")) %>%
  mutate(species = "P. tuahiniensis") %>%
  select(group_id, gene_id = gene_id_match, species, mean_expression, log_expression, mean_methylation)

# Combine all biomin data
all_biomin_orthologs <- bind_rows(apul_biomin_data, peve_biomin_data, ptua_biomin_data)

cat("Number of biomin genes per species:\n")
Number of biomin genes per species:
all_biomin_orthologs %>% count(species)
# A tibble: 3 × 2
  species             n
  <chr>           <int>
1 A. pulchra        499
2 P. evermanni      483
3 P. tuahiniensis   459
# Find orthologs present in all three species
orthologs_all_species <- all_biomin_orthologs %>%
  group_by(group_id) %>%
  summarize(n_species = n_distinct(species)) %>%
  filter(n_species == 3) %>%
  pull(group_id)

cat("\nNumber of ortholog groups present in all 3 species:", length(orthologs_all_species), "\n")

Number of ortholog groups present in all 3 species: 250
# Filter to only orthologs in all species
shared_orthologs <- all_biomin_orthologs %>%
  filter(group_id %in% orthologs_all_species)

cat("\nShared ortholog groups:\n")

Shared ortholog groups:
print(orthologs_all_species)
  [1] "OG_00030" "OG_00171" "OG_00176" "OG_00246" "OG_00297" "OG_00298"
  [7] "OG_00302" "OG_00305" "OG_00314" "OG_00355" "OG_00378" "OG_00430"
 [13] "OG_00460" "OG_00466" "OG_00510" "OG_00514" "OG_00572" "OG_00643"
 [19] "OG_00752" "OG_00807" "OG_00842" "OG_00843" "OG_01023" "OG_01117"
 [25] "OG_01121" "OG_01147" "OG_01155" "OG_01177" "OG_01223" "OG_01277"
 [31] "OG_01312" "OG_01317" "OG_01353" "OG_01354" "OG_01384" "OG_01414"
 [37] "OG_01452" "OG_01486" "OG_01489" "OG_01579" "OG_01608" "OG_01611"
 [43] "OG_01630" "OG_01724" "OG_01727" "OG_01747" "OG_01748" "OG_01753"
 [49] "OG_01758" "OG_01781" "OG_01981" "OG_01999" "OG_02000" "OG_02012"
 [55] "OG_02088" "OG_02090" "OG_02102" "OG_02124" "OG_02146" "OG_02148"
 [61] "OG_02149" "OG_02163" "OG_02176" "OG_02186" "OG_02219" "OG_02220"
 [67] "OG_02260" "OG_02317" "OG_02358" "OG_02439" "OG_02537" "OG_02619"
 [73] "OG_02666" "OG_02690" "OG_02924" "OG_02935" "OG_02967" "OG_03267"
 [79] "OG_03268" "OG_03269" "OG_03270" "OG_03288" "OG_03289" "OG_03291"
 [85] "OG_03298" "OG_03330" "OG_03429" "OG_03451" "OG_03484" "OG_03626"
 [91] "OG_03628" "OG_03671" "OG_03673" "OG_03780" "OG_03850" "OG_03856"
 [97] "OG_03857" "OG_04165" "OG_04238" "OG_04247" "OG_04327" "OG_04331"
[103] "OG_04372" "OG_04443" "OG_04514" "OG_04515" "OG_04537" "OG_04538"
[109] "OG_04547" "OG_04560" "OG_04651" "OG_04694" "OG_04698" "OG_04723"
[115] "OG_04756" "OG_04789" "OG_04799" "OG_05010" "OG_05087" "OG_05121"
[121] "OG_05228" "OG_05250" "OG_05304" "OG_05308" "OG_05366" "OG_05367"
[127] "OG_05498" "OG_05514" "OG_05568" "OG_05637" "OG_05666" "OG_05713"
[133] "OG_05717" "OG_05718" "OG_05749" "OG_05819" "OG_05856" "OG_05874"
[139] "OG_05875" "OG_05950" "OG_05952" "OG_06004" "OG_06101" "OG_06119"
[145] "OG_06152" "OG_06158" "OG_06181" "OG_06198" "OG_06234" "OG_06236"
[151] "OG_06247" "OG_06279" "OG_06373" "OG_06384" "OG_06592" "OG_06599"
[157] "OG_06607" "OG_06670" "OG_06711" "OG_06712" "OG_06717" "OG_06719"
[163] "OG_06754" "OG_06775" "OG_06875" "OG_06908" "OG_06922" "OG_06931"
[169] "OG_06954" "OG_06955" "OG_06998" "OG_07000" "OG_07042" "OG_07150"
[175] "OG_07153" "OG_07183" "OG_07252" "OG_07265" "OG_07330" "OG_07331"
[181] "OG_07389" "OG_07404" "OG_07508" "OG_07531" "OG_07620" "OG_07641"
[187] "OG_07772" "OG_07821" "OG_07822" "OG_07892" "OG_07958" "OG_08083"
[193] "OG_08096" "OG_08143" "OG_08144" "OG_08145" "OG_08192" "OG_08259"
[199] "OG_08271" "OG_08331" "OG_08347" "OG_08432" "OG_08497" "OG_08528"
[205] "OG_08545" "OG_08622" "OG_08639" "OG_08658" "OG_08663" "OG_08717"
[211] "OG_08768" "OG_08842" "OG_08849" "OG_08856" "OG_08874" "OG_08878"
[217] "OG_08914" "OG_08920" "OG_09003" "OG_09024" "OG_09106" "OG_09174"
[223] "OG_09247" "OG_09310" "OG_09424" "OG_09455" "OG_09486" "OG_09487"
[229] "OG_09511" "OG_09596" "OG_09597" "OG_09598" "OG_09638" "OG_09657"
[235] "OG_09806" "OG_09896" "OG_09897" "OG_09942" "OG_09969" "OG_09986"
[241] "OG_10002" "OG_10004" "OG_10007" "OG_10008" "OG_10039" "OG_10055"
[247] "OG_10109" "OG_10121" "OG_10183" "OG_10205"

Ortholog Expression vs Methylation - Connected by Ortholog Group

# Plot with lines connecting orthologs across species
ggplot(shared_orthologs, aes(x = mean_methylation, y = log_expression, color = species)) +
  geom_line(aes(group = group_id), color = "gray70", alpha = 0.5) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_manual(values = c("A. pulchra" = "darkred",
                                 "P. evermanni" = "darkblue",
                                 "P. tuahiniensis" = "darkgreen")) +
  labs(title = "Biomineralization Orthologs Across Species",
       subtitle = "Lines connect the same ortholog group across species",
       x = "Mean Gene Body Methylation (%)",
       y = "Log10(Mean Expression + 1)",
       color = "Species") +
  theme_minimal() +
  theme(legend.position = "bottom",
        plot.title = element_text(hjust = 0.5),
        plot.subtitle = element_text(hjust = 0.5))

Pairwise Species Comparisons for Shared Orthologs

# Reshape data to wide format for pairwise comparisons
orthologs_wide <- shared_orthologs %>%
  select(group_id, species, log_expression, mean_methylation) %>%
  pivot_wider(names_from = species,
              values_from = c(log_expression, mean_methylation),
              names_sep = "_")

head(orthologs_wide)
# A tibble: 6 × 7
  group_id log_expression_A. pul…¹ log_expression_P. ev…² log_expression_P. tu…³
  <chr>                      <dbl>                  <dbl>                  <dbl>
1 OG_00752                    2.67                   3.25                   3.04
2 OG_00807                    3.13                   3.10                   2.84
3 OG_00842                    1.61                   1.16                   2.39
4 OG_00843                    4.14                   3.66                   4.76
5 OG_01023                    3.42                   2.40                   3.08
6 OG_01117                    2.79                   2.57                   2.66
# ℹ abbreviated names: ¹​`log_expression_A. pulchra`,
#   ²​`log_expression_P. evermanni`, ³​`log_expression_P. tuahiniensis`
# ℹ 3 more variables: `mean_methylation_A. pulchra` <dbl>,
#   `mean_methylation_P. evermanni` <dbl>,
#   `mean_methylation_P. tuahiniensis` <dbl>
# Expression comparisons
p1 <- ggplot(orthologs_wide, aes(x = `log_expression_A. pulchra`, y = `log_expression_P. evermanni`)) +
  geom_point(alpha = 0.7, color = "purple") +
  geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "gray50") +
  geom_smooth(method = "lm", se = TRUE, color = "black") +
  labs(title = "A. pulchra vs P. evermanni",
       x = "A. pulchra Expression",
       y = "P. evermanni Expression") +
  theme_minimal() +
  coord_equal()

p2 <- ggplot(orthologs_wide, aes(x = `log_expression_A. pulchra`, y = `log_expression_P. tuahiniensis`)) +
  geom_point(alpha = 0.7, color = "orange") +
  geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "gray50") +
  geom_smooth(method = "lm", se = TRUE, color = "black") +
  labs(title = "A. pulchra vs P. tuahiniensis",
       x = "A. pulchra Expression",
       y = "P. tuahiniensis Expression") +
  theme_minimal() +
  coord_equal()

p3 <- ggplot(orthologs_wide, aes(x = `log_expression_P. evermanni`, y = `log_expression_P. tuahiniensis`)) +
  geom_point(alpha = 0.7, color = "cyan4") +
  geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "gray50") +
  geom_smooth(method = "lm", se = TRUE, color = "black") +
  labs(title = "P. evermanni vs P. tuahiniensis",
       x = "P. evermanni Expression",
       y = "P. tuahiniensis Expression") +
  theme_minimal() +
  coord_equal()

# Combine plots
library(patchwork)
p1 + p2 + p3 +
  plot_annotation(title = "Expression of Biomineralization Orthologs - Pairwise Comparisons",
                  theme = theme(plot.title = element_text(hjust = 0.5, size = 14)))

# Methylation comparisons
m1 <- ggplot(orthologs_wide, aes(x = `mean_methylation_A. pulchra`, y = `mean_methylation_P. evermanni`)) +
  geom_point(alpha = 0.7, color = "purple") +
  geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "gray50") +
  geom_smooth(method = "lm", se = TRUE, color = "black") +
  labs(title = "A. pulchra vs P. evermanni",
       x = "A. pulchra Methylation",
       y = "P. evermanni Methylation") +
  theme_minimal() +
  coord_equal()

m2 <- ggplot(orthologs_wide, aes(x = `mean_methylation_A. pulchra`, y = `mean_methylation_P. tuahiniensis`)) +
  geom_point(alpha = 0.7, color = "orange") +
  geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "gray50") +
  geom_smooth(method = "lm", se = TRUE, color = "black") +
  labs(title = "A. pulchra vs P. tuahiniensis",
       x = "A. pulchra Methylation",
       y = "P. tuahiniensis Methylation") +
  theme_minimal() +
  coord_equal()

m3 <- ggplot(orthologs_wide, aes(x = `mean_methylation_P. evermanni`, y = `mean_methylation_P. tuahiniensis`)) +
  geom_point(alpha = 0.7, color = "cyan4") +
  geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "gray50") +
  geom_smooth(method = "lm", se = TRUE, color = "black") +
  labs(title = "P. evermanni vs P. tuahiniensis",
       x = "P. evermanni Methylation",
       y = "P. tuahiniensis Methylation") +
  theme_minimal() +
  coord_equal()

# Combine plots
m1 + m2 + m3 +
  plot_annotation(title = "Methylation of Biomineralization Orthologs - Pairwise Comparisons",
                  theme = theme(plot.title = element_text(hjust = 0.5, size = 14)))

Correlation Statistics for Orthologs

cat("=== EXPRESSION CORRELATIONS ===\n\n")
=== EXPRESSION CORRELATIONS ===
cat("A. pulchra vs P. evermanni:\n")
A. pulchra vs P. evermanni:
cor_ap_pe_expr <- cor.test(orthologs_wide$`log_expression_A. pulchra`,
                           orthologs_wide$`log_expression_P. evermanni`,
                           use = "complete.obs")
cat("  r =", round(cor_ap_pe_expr$estimate, 3), ", p =", format(cor_ap_pe_expr$p.value, digits = 3), "\n\n")
  r = 0.72 , p = 3.67e-41
cat("A. pulchra vs P. tuahiniensis:\n")
A. pulchra vs P. tuahiniensis:
cor_ap_pt_expr <- cor.test(orthologs_wide$`log_expression_A. pulchra`,
                           orthologs_wide$`log_expression_P. tuahiniensis`,
                           use = "complete.obs")
cat("  r =", round(cor_ap_pt_expr$estimate, 3), ", p =", format(cor_ap_pt_expr$p.value, digits = 3), "\n\n")
  r = 0.691 , p = 7.32e-37
cat("P. evermanni vs P. tuahiniensis:\n")
P. evermanni vs P. tuahiniensis:
cor_pe_pt_expr <- cor.test(orthologs_wide$`log_expression_P. evermanni`,
                           orthologs_wide$`log_expression_P. tuahiniensis`,
                           use = "complete.obs")
cat("  r =", round(cor_pe_pt_expr$estimate, 3), ", p =", format(cor_pe_pt_expr$p.value, digits = 3), "\n\n")
  r = 0.745 , p = 1.84e-45
cat("=== METHYLATION CORRELATIONS ===\n\n")
=== METHYLATION CORRELATIONS ===
cat("A. pulchra vs P. evermanni:\n")
A. pulchra vs P. evermanni:
cor_ap_pe_meth <- cor.test(orthologs_wide$`mean_methylation_A. pulchra`,
                           orthologs_wide$`mean_methylation_P. evermanni`,
                           use = "complete.obs")
cat("  r =", round(cor_ap_pe_meth$estimate, 3), ", p =", format(cor_ap_pe_meth$p.value, digits = 3), "\n\n")
  r = 0.704 , p = 1.05e-38
cat("A. pulchra vs P. tuahiniensis:\n")
A. pulchra vs P. tuahiniensis:
cor_ap_pt_meth <- cor.test(orthologs_wide$`mean_methylation_A. pulchra`,
                           orthologs_wide$`mean_methylation_P. tuahiniensis`,
                           use = "complete.obs")
cat("  r =", round(cor_ap_pt_meth$estimate, 3), ", p =", format(cor_ap_pt_meth$p.value, digits = 3), "\n\n")
  r = 0.7 , p = 3.69e-38
cat("P. evermanni vs P. tuahiniensis:\n")
P. evermanni vs P. tuahiniensis:
cor_pe_pt_meth <- cor.test(orthologs_wide$`mean_methylation_P. evermanni`,
                           orthologs_wide$`mean_methylation_P. tuahiniensis`,
                           use = "complete.obs")
cat("  r =", round(cor_pe_pt_meth$estimate, 3), ", p =", format(cor_pe_pt_meth$p.value, digits = 3), "\n")
  r = 0.665 , p = 3.17e-33

Ortholog Summary Table

# Create a summary table of all shared orthologs
ortholog_summary <- orthologs_wide %>%
  mutate(
    expr_range = pmax(`log_expression_A. pulchra`, `log_expression_P. evermanni`, `log_expression_P. tuahiniensis`, na.rm = TRUE) -
                 pmin(`log_expression_A. pulchra`, `log_expression_P. evermanni`, `log_expression_P. tuahiniensis`, na.rm = TRUE),
    meth_range = pmax(`mean_methylation_A. pulchra`, `mean_methylation_P. evermanni`, `mean_methylation_P. tuahiniensis`, na.rm = TRUE) -
                 pmin(`mean_methylation_A. pulchra`, `mean_methylation_P. evermanni`, `mean_methylation_P. tuahiniensis`, na.rm = TRUE)
  ) %>%
  arrange(desc(expr_range))

cat("Shared biomineralization orthologs (sorted by expression variability across species):\n\n")
Shared biomineralization orthologs (sorted by expression variability across species):
ortholog_summary %>%
  knitr::kable(digits = 2)
group_id log_expression_A. pulchra log_expression_P. evermanni log_expression_P. tuahiniensis mean_methylation_A. pulchra mean_methylation_P. evermanni mean_methylation_P. tuahiniensis expr_range meth_range
OG_02967 1.65 0.90 3.59 1.32 0.50 0.35 2.69 0.97
OG_08096 0.99 2.25 3.17 2.17 0.75 0.84 2.18 1.42
OG_01121 0.85 2.91 3.02 0.43 8.21 5.48 2.17 7.78
OG_06234 1.79 0.48 2.65 0.64 0.54 0.34 2.17 0.30
OG_05250 2.48 0.35 0.35 0.73 1.23 0.51 2.13 0.72
OG_09596 4.61 2.62 4.70 0.73 0.60 0.57 2.08 0.17
OG_06712 0.83 2.40 2.75 0.43 0.57 0.56 1.91 0.14
OG_06101 1.87 2.35 3.64 0.58 6.21 0.78 1.77 5.63
OG_07772 2.45 0.69 1.71 1.71 0.35 0.48 1.76 1.36
OG_00643 2.59 1.85 0.91 0.71 0.69 0.40 1.68 0.31
OG_06711 0.63 0.89 2.23 1.27 0.57 0.37 1.60 0.89
OG_08849 0.81 0.75 2.29 0.58 0.43 0.42 1.54 0.16
OG_03288 2.45 1.16 2.70 0.93 1.97 0.89 1.54 1.08
OG_08914 2.84 1.51 1.32 0.64 0.57 0.46 1.52 0.18
OG_04514 3.35 1.87 3.01 0.77 2.06 0.42 1.48 1.64
OG_06908 0.82 0.56 2.04 1.00 0.98 0.27 1.48 0.73
OG_03429 2.38 1.31 2.77 0.66 0.69 0.31 1.47 0.38
OG_02163 2.78 1.34 2.56 1.54 0.59 0.47 1.44 1.07
OG_09638 1.43 0.00 0.47 0.50 0.55 0.36 1.43 0.19
OG_05304 2.02 1.00 2.41 11.17 1.66 0.42 1.41 10.75
OG_06119 3.82 2.61 3.95 46.24 54.54 8.82 1.34 45.72
OG_07331 2.40 2.83 1.50 0.54 0.96 0.38 1.33 0.57
OG_02537 2.58 1.26 2.15 1.21 1.44 0.49 1.31 0.95
OG_08331 1.35 1.92 2.66 0.48 0.75 0.48 1.31 0.27
OG_07508 3.03 1.74 2.53 40.71 51.12 24.09 1.29 27.03
OG_01747 1.86 3.14 2.93 0.67 0.55 0.50 1.29 0.17
OG_02924 1.36 0.09 0.61 0.48 0.79 1.22 1.27 0.74
OG_07153 0.90 2.15 2.08 0.84 2.20 0.40 1.25 1.80
OG_03780 2.76 1.96 3.21 5.22 0.63 0.46 1.25 4.76
OG_04372 1.87 1.32 2.57 1.04 1.46 0.78 1.25 0.68
OG_10055 3.16 1.98 3.23 12.02 0.93 5.48 1.24 11.10
OG_08842 2.58 2.78 3.82 1.12 0.66 0.41 1.24 0.70
OG_00842 1.61 1.16 2.39 0.49 0.78 0.35 1.23 0.43
OG_06373 1.42 0.95 2.18 0.42 0.53 0.77 1.23 0.35
OG_05666 1.20 2.06 2.42 1.43 0.77 0.61 1.22 0.81
OG_07958 2.01 1.75 2.96 0.46 2.72 0.38 1.21 2.35
OG_03270 2.35 1.57 2.78 0.85 1.13 0.38 1.20 0.75
OG_08528 1.88 2.06 0.87 0.96 0.44 0.51 1.20 0.52
OG_08145 1.75 1.27 2.45 2.05 1.32 0.60 1.19 1.45
OG_03850 0.54 1.72 1.57 0.84 0.68 0.49 1.18 0.35
OG_02186 1.92 0.74 1.70 0.74 0.98 0.46 1.18 0.52
OG_02146 2.87 1.99 1.70 0.50 0.95 0.42 1.18 0.53
OG_00246 2.69 2.24 1.52 0.98 0.88 0.49 1.17 0.49
OG_10183 1.91 3.06 2.22 0.47 0.52 0.66 1.16 0.19
OG_09174 1.78 2.05 2.93 8.28 6.40 1.21 1.15 7.07
OG_01579 1.26 2.11 2.39 36.09 57.79 7.83 1.13 49.95
OG_08545 2.37 2.76 3.50 1.20 0.87 1.31 1.12 0.44
OG_00510 3.92 2.80 3.05 0.57 0.81 0.43 1.12 0.38
OG_00355 2.47 2.47 3.58 19.51 15.16 23.74 1.11 8.58
OG_01177 2.62 3.33 3.73 3.56 0.88 0.47 1.11 3.09
OG_00843 4.14 3.66 4.76 7.97 10.14 0.67 1.11 9.48
OG_01147 3.24 2.16 2.35 11.64 39.42 15.49 1.08 27.78
OG_02000 2.11 2.30 3.18 3.10 0.77 0.40 1.07 2.70
OG_08083 1.74 1.59 2.66 0.37 0.64 1.37 1.07 0.99
OG_08874 2.72 1.85 2.90 1.28 0.92 0.85 1.05 0.43
OG_07330 2.07 1.03 1.86 16.94 38.43 5.69 1.04 32.74
OG_02690 2.42 1.73 2.77 0.89 0.46 0.41 1.04 0.48
OG_08663 1.99 1.26 2.29 0.74 0.71 0.48 1.03 0.27
OG_08717 2.47 1.44 1.53 3.70 0.51 0.43 1.03 3.28
OG_09024 3.23 2.20 2.81 0.88 0.93 0.53 1.03 0.40
OG_01781 2.44 2.15 3.18 0.80 0.57 0.78 1.03 0.23
OG_01023 3.42 2.40 3.08 1.03 0.65 0.55 1.02 0.48
OG_03289 1.98 1.11 2.13 0.77 1.45 0.73 1.02 0.72
OG_06875 1.92 1.33 2.34 0.91 0.63 0.37 1.01 0.54
OG_03626 2.41 1.56 2.57 0.42 0.51 0.39 1.01 0.12
OG_02439 2.12 2.63 3.13 3.93 0.62 0.48 1.01 3.45
OG_04515 1.88 1.48 2.49 1.23 0.84 0.47 1.01 0.76
OG_01727 2.15 1.97 1.15 1.22 0.55 0.87 1.00 0.67
OG_04537 2.32 1.33 2.02 0.41 0.52 0.36 0.99 0.16
OG_04651 2.95 2.17 3.15 1.14 0.45 0.59 0.98 0.69
OG_03298 3.10 2.12 2.34 57.92 1.03 21.17 0.98 56.90
OG_09942 2.65 1.77 2.74 13.53 8.57 6.41 0.97 7.12
OG_08768 0.96 1.62 1.93 0.81 1.06 0.47 0.97 0.59
OG_01223 2.22 2.08 3.04 0.72 0.68 0.49 0.97 0.24
OG_03484 2.43 1.50 1.46 3.81 0.76 0.38 0.97 3.43
OG_00314 3.85 3.25 4.19 0.99 0.61 9.17 0.94 8.56
OG_05717 1.43 1.35 0.50 0.42 0.33 0.40 0.94 0.10
OG_10002 3.62 3.16 4.08 3.71 3.28 4.62 0.92 1.34
OG_02935 1.49 1.83 2.41 1.18 0.68 0.47 0.92 0.72
OG_03673 2.31 2.75 3.23 14.84 11.89 3.77 0.91 11.07
OG_03451 2.86 3.77 3.21 52.99 39.88 30.77 0.91 22.22
OG_07265 1.13 1.74 0.85 1.96 0.77 0.52 0.89 1.44
OG_07822 1.41 0.94 1.83 0.27 0.87 0.37 0.89 0.60
OG_10007 4.11 3.23 3.73 1.30 2.77 1.83 0.88 1.48
OG_02317 3.77 2.99 3.87 6.68 1.67 0.85 0.88 5.84
OG_02102 2.13 1.74 2.62 4.81 74.61 32.22 0.87 69.80
OG_05950 1.87 1.64 2.49 0.58 0.53 0.68 0.86 0.15
OG_03268 2.43 1.82 1.58 0.54 1.26 19.20 0.85 18.66
OG_05087 2.71 1.93 2.78 0.44 0.37 0.46 0.85 0.09
OG_06384 2.52 2.25 3.08 1.10 1.80 1.17 0.83 0.70
OG_00297 1.94 1.41 2.23 1.07 0.79 0.37 0.82 0.70
OG_01277 2.51 1.69 2.23 48.47 29.80 8.06 0.82 40.41
OG_01353 2.12 2.62 1.80 0.39 0.78 1.76 0.82 1.37
OG_04238 2.90 3.72 2.95 1.33 1.06 0.87 0.82 0.46
OG_08432 2.62 1.80 2.14 73.44 10.04 43.17 0.81 63.40
OG_10008 2.76 3.57 2.86 1.50 1.06 1.57 0.81 0.51
OG_06279 2.92 3.14 3.72 8.10 2.51 0.52 0.80 7.58
OG_08271 2.56 2.41 3.21 10.59 0.94 2.68 0.80 9.65
OG_05010 2.16 1.37 1.56 0.47 0.72 0.94 0.79 0.47
OG_01753 0.88 0.09 0.60 1.04 0.46 0.50 0.79 0.58
OG_05819 1.67 1.35 2.14 0.62 0.49 0.41 0.79 0.21
OG_10039 2.31 1.95 2.74 0.80 0.58 0.57 0.79 0.24
OG_03856 1.00 0.74 1.51 0.40 0.56 1.56 0.77 1.16
OG_00302 0.77 0.33 1.11 0.32 0.62 1.58 0.77 1.26
OG_06599 2.42 2.86 3.19 43.89 55.61 27.13 0.77 28.48
OG_09003 1.89 1.95 2.66 0.98 0.67 0.57 0.77 0.41
OG_08920 2.28 3.04 2.72 32.81 32.21 15.46 0.76 17.36
OG_07183 2.24 2.21 2.97 1.11 1.15 0.46 0.76 0.69
OG_01155 3.62 3.05 3.81 5.01 2.21 1.50 0.76 3.51
OG_06931 2.36 2.19 2.95 65.91 40.83 31.13 0.76 34.78
OG_09986 2.44 1.68 2.38 3.34 1.63 2.65 0.76 1.72
OG_05568 2.46 1.71 2.15 0.71 0.54 0.53 0.76 0.18
OG_08144 1.98 2.71 2.49 0.68 0.57 0.42 0.73 0.25
OG_06152 3.43 3.23 3.95 21.13 5.32 12.28 0.73 15.81
OG_03671 4.02 3.98 3.30 0.44 0.59 0.47 0.73 0.15
OG_04723 2.80 2.28 3.00 23.10 52.55 19.78 0.72 32.76
OG_09310 2.27 2.53 2.98 0.72 0.66 0.48 0.71 0.25
OG_00430 2.47 3.01 3.17 1.59 0.85 0.60 0.70 0.99
OG_05749 2.94 3.36 2.67 0.90 0.66 0.63 0.69 0.27
OG_01724 2.78 2.09 2.34 0.76 0.71 0.49 0.69 0.27
OG_03267 2.62 1.94 2.09 0.32 3.80 0.31 0.68 3.49
OG_02666 3.28 2.70 3.38 0.63 0.57 1.40 0.68 0.82
OG_09598 3.60 3.18 3.86 0.50 0.86 0.46 0.67 0.39
OG_10004 2.70 2.11 2.03 50.47 58.20 14.23 0.67 43.98
OG_06607 2.71 2.40 2.04 15.03 5.06 0.53 0.67 14.50
OG_09896 3.67 3.26 3.01 18.73 52.33 14.20 0.66 38.13
OG_03269 3.17 2.53 3.19 0.49 0.86 0.44 0.66 0.43
OG_01354 3.15 2.83 2.50 7.00 0.74 0.39 0.65 6.61
OG_07389 2.92 2.33 2.27 0.57 0.46 0.39 0.65 0.18
OG_04331 2.13 1.48 1.99 0.46 0.74 24.14 0.65 23.68
OG_00466 2.76 3.15 2.50 31.30 38.40 7.49 0.64 30.91
OG_01630 3.07 3.33 3.71 7.20 6.51 3.32 0.64 3.88
OG_08259 2.13 1.74 2.38 1.68 0.69 0.40 0.64 1.27
OG_04799 2.79 3.39 2.75 2.48 0.79 0.54 0.64 1.95
OG_05228 0.37 1.00 0.95 1.16 5.47 0.43 0.63 5.04
OG_02358 2.55 2.25 2.88 0.43 0.72 0.46 0.63 0.28
OG_07892 3.06 2.45 2.62 18.46 8.48 10.84 0.61 9.98
OG_04443 2.82 2.32 2.21 7.06 1.97 2.06 0.61 5.09
OG_01384 1.77 1.99 2.38 0.43 0.55 0.42 0.61 0.13
OG_02088 4.29 4.59 3.98 0.54 1.22 1.05 0.61 0.68
OG_04538 3.12 2.71 2.51 0.32 0.67 0.67 0.61 0.36
OG_07150 2.42 1.98 2.59 7.39 1.15 0.41 0.61 6.98
OG_07821 1.03 1.16 1.63 0.55 0.56 0.55 0.60 0.01
OG_09969 2.71 2.98 2.38 0.54 0.67 0.68 0.60 0.14
OG_05637 1.74 2.12 1.52 0.53 0.50 0.69 0.60 0.18
OG_09806 3.58 4.03 4.18 12.85 1.11 2.31 0.60 11.74
OG_05875 3.99 3.40 3.84 3.80 1.60 6.77 0.59 5.17
OG_04756 1.25 1.85 1.33 0.41 0.76 0.46 0.59 0.35
OG_04698 1.57 2.15 1.87 5.39 1.04 0.47 0.58 4.92
OG_08658 2.96 2.38 2.75 42.45 68.95 28.92 0.58 40.03
OG_00752 2.67 3.25 3.04 0.63 0.69 0.43 0.58 0.25
OG_02176 2.30 1.96 2.53 2.63 0.67 0.50 0.57 2.13
OG_01486 3.35 3.92 3.87 0.91 0.90 0.52 0.57 0.39
OG_01414 1.49 1.02 0.92 1.59 2.18 0.45 0.57 1.73
OG_02220 2.77 2.44 3.00 9.29 1.24 2.82 0.57 8.05
OG_00572 3.06 2.49 2.57 35.45 33.79 26.89 0.56 8.56
OG_09657 3.20 2.64 3.13 9.70 28.08 2.68 0.56 25.39
OG_00171 3.24 2.80 2.68 54.14 33.41 42.35 0.56 20.72
OG_06592 2.42 2.78 2.98 3.18 1.83 1.04 0.56 2.14
OG_04247 3.10 2.88 2.54 28.98 1.63 1.95 0.55 27.35
OG_09597 3.18 3.57 3.73 0.58 0.68 0.58 0.55 0.11
OG_05366 2.73 2.59 3.14 0.52 1.20 0.44 0.55 0.76
OG_06236 2.45 1.90 2.07 1.89 1.04 0.42 0.55 1.47
OG_03330 3.18 2.63 2.97 0.91 1.18 0.52 0.55 0.66
OG_07042 2.45 2.06 2.60 6.72 14.19 7.09 0.54 7.47
OG_00030 2.13 1.99 2.52 5.55 23.67 3.97 0.52 19.70
OG_01999 2.08 1.56 1.84 0.65 0.74 0.43 0.52 0.31
OG_02260 2.70 2.18 2.57 2.77 2.44 0.57 0.52 2.20
OG_06247 1.78 1.50 2.02 0.49 1.57 0.52 0.52 1.08
OG_02012 2.31 2.61 2.82 26.97 40.13 7.25 0.52 32.88
OG_09455 3.05 3.51 3.56 11.94 8.12 4.18 0.50 7.77
OG_10205 3.08 2.58 2.84 1.28 0.52 0.53 0.50 0.77
OG_08639 3.70 3.56 4.06 7.24 8.82 4.48 0.50 4.35
OG_09247 3.97 4.47 4.41 0.34 0.60 0.52 0.49 0.26
OG_05952 2.42 2.18 2.67 0.87 0.73 0.84 0.49 0.14
OG_05121 3.79 3.36 3.85 26.46 25.43 24.39 0.49 2.06
OG_06719 2.48 2.66 2.97 0.51 0.98 0.56 0.48 0.47
OG_02149 1.69 2.17 1.99 0.42 0.67 0.37 0.48 0.30
OG_02124 3.74 3.43 3.26 55.80 35.80 23.88 0.48 31.92
OG_05713 2.69 2.21 2.64 0.63 1.13 0.45 0.48 0.68
OG_08347 3.32 2.87 3.35 25.43 36.64 7.39 0.48 29.25
OG_06754 2.40 2.88 2.77 18.63 31.47 15.70 0.48 15.77
OG_05874 4.08 3.79 4.26 17.46 13.59 7.14 0.47 10.32
OG_04560 4.19 3.97 4.44 36.01 21.42 13.84 0.47 22.16
OG_05514 2.80 3.26 3.10 2.13 9.36 0.78 0.47 8.58
OG_03291 2.61 2.62 3.07 1.36 3.71 2.18 0.46 2.35
OG_06775 2.15 2.07 2.53 0.56 0.69 0.39 0.45 0.31
OG_06198 3.06 2.92 3.37 1.79 1.08 0.71 0.45 1.08
OG_06158 2.14 1.84 2.29 45.23 14.73 10.60 0.45 34.63
OG_10121 2.53 2.57 2.97 7.64 6.71 5.90 0.43 1.74
OG_05308 2.82 2.39 2.63 10.30 22.79 13.55 0.43 12.49
OG_00298 1.20 1.27 1.63 1.56 0.57 0.94 0.43 0.99
OG_01317 2.98 2.74 3.17 1.15 1.41 0.43 0.43 0.98
OG_01489 2.97 3.18 3.39 4.86 14.69 3.83 0.42 10.86
OG_06670 3.26 2.84 3.04 2.30 0.79 20.64 0.42 19.85
OG_07620 2.76 2.96 2.55 23.51 50.45 22.36 0.41 28.09
OG_02619 1.11 1.18 1.52 0.38 0.62 0.48 0.40 0.24
OG_06998 3.57 3.81 3.41 4.93 0.65 0.47 0.40 4.47
OG_03857 1.64 1.44 1.84 0.61 0.43 1.06 0.40 0.63
OG_00176 1.30 1.03 1.43 0.69 0.48 1.10 0.40 0.61
OG_08497 2.63 2.24 2.25 14.87 58.20 6.72 0.39 51.48
OG_01608 2.76 3.00 3.15 0.56 9.00 1.96 0.39 8.44
OG_07404 2.67 2.87 3.05 13.91 13.48 7.57 0.38 6.34
OG_04327 3.42 3.04 3.38 22.45 49.03 8.22 0.38 40.82
OG_04547 2.70 3.06 3.08 15.58 71.36 19.69 0.38 55.79
OG_00378 1.46 1.10 1.40 0.85 0.42 0.33 0.36 0.52
OG_07252 1.93 2.28 2.11 0.61 0.51 0.55 0.35 0.11
OG_05856 2.76 2.41 2.68 0.64 1.82 0.54 0.35 1.29
OG_08143 2.50 2.76 2.84 0.38 1.07 0.37 0.34 0.70
OG_05718 2.93 3.12 3.27 16.07 23.32 4.89 0.34 18.43
OG_07641 3.12 3.45 3.46 34.58 35.03 39.95 0.34 5.37
OG_00460 1.92 1.91 2.25 0.34 0.37 0.43 0.34 0.09
OG_00305 2.40 2.07 2.21 21.87 23.60 16.51 0.33 7.09
OG_04694 2.64 2.51 2.84 62.08 64.22 30.30 0.33 33.92
OG_07531 1.63 1.31 1.40 1.31 0.72 0.47 0.32 0.84
OG_09486 2.89 3.21 3.14 15.16 20.17 3.56 0.32 16.61
OG_01981 2.99 3.30 2.99 1.96 1.71 0.42 0.31 1.54
OG_07000 3.51 3.37 3.21 0.69 0.91 0.41 0.30 0.50
OG_01748 1.38 1.52 1.68 1.66 0.50 0.40 0.30 1.26
OG_09424 2.57 2.87 2.87 49.89 36.65 4.55 0.30 45.34
OG_08878 3.26 3.35 3.55 23.07 1.25 0.97 0.30 22.10
OG_02219 2.71 2.42 2.66 9.82 15.83 3.47 0.29 12.36
OG_01611 2.51 2.38 2.67 0.38 0.58 0.45 0.29 0.20
OG_06922 2.46 2.74 2.49 0.70 0.56 0.82 0.29 0.25
OG_00807 3.13 3.10 2.84 3.58 31.22 60.07 0.29 56.48
OG_04789 3.20 2.96 2.94 0.43 0.50 0.63 0.26 0.20
OG_01758 2.13 2.31 2.39 0.45 0.85 0.44 0.26 0.40
OG_06004 2.91 2.86 3.11 9.71 11.07 7.34 0.25 3.73
OG_08622 3.04 3.08 3.30 1.76 0.95 0.51 0.25 1.26
OG_06954 1.97 1.73 1.89 26.39 29.11 7.16 0.24 21.95
OG_00514 1.56 1.71 1.79 2.14 44.00 18.46 0.23 41.86
OG_02148 2.37 2.15 2.22 0.66 0.95 0.86 0.22 0.29
OG_01452 3.00 3.23 3.15 54.19 32.63 47.43 0.22 21.57
OG_01117 2.79 2.57 2.66 0.51 0.70 0.40 0.22 0.30
OG_09487 3.08 3.27 3.30 17.17 26.98 7.16 0.22 19.82
OG_09106 2.57 2.50 2.71 10.32 3.02 3.09 0.21 7.30
OG_06717 2.80 2.86 2.65 20.24 8.38 4.81 0.21 15.43
OG_01312 2.67 2.87 2.77 0.70 0.91 0.65 0.20 0.26
OG_09897 1.26 1.39 1.46 0.98 0.30 0.32 0.20 0.67
OG_06955 2.53 2.48 2.66 14.63 9.93 4.62 0.18 10.01
OG_05498 2.63 2.47 2.65 27.42 12.95 13.57 0.17 14.47
OG_04165 2.75 2.89 2.78 23.20 23.39 16.89 0.15 6.50
OG_02090 2.79 2.82 2.90 0.75 2.83 0.39 0.11 2.44
OG_08856 2.70 2.72 2.81 6.71 13.54 1.62 0.10 11.92
OG_05367 3.30 3.29 3.21 1.40 0.77 0.66 0.09 0.73
OG_09511 2.81 2.75 2.72 24.27 12.38 2.46 0.09 21.81
OG_10109 2.31 2.38 2.40 17.79 20.09 33.28 0.09 15.49
OG_03628 2.55 2.64 2.58 3.96 14.40 3.12 0.08 11.28
OG_08192 1.73 1.75 1.79 0.48 0.55 0.38 0.06 0.17
OG_06181 3.72 3.69 3.66 37.88 47.48 4.89 0.05 42.59

Data Validation

This section verifies that for each species, a given point in the plot truly represents the same gene from both the expression and methylation datasets.

Acropora pulchra - Validation

# Pick a random gene from the combined dataset
set.seed(42)
apul_test_gene <- sample(apul_combined$gene_id, 1)

cat("=== VALIDATION FOR ACROPORA PULCHRA ===\n")
=== VALIDATION FOR ACROPORA PULCHRA ===
cat("Test gene ID:", apul_test_gene, "\n\n")
Test gene ID: FUN_038232
# Get raw expression data for this gene
cat("--- Raw Expression Data ---\n")
--- Raw Expression Data ---
apul_expr_raw <- apul_expression %>%
  filter(gene_id == apul_test_gene)
print(apul_expr_raw)
# A tibble: 1 × 41
  gene_id  `ACR-139-TP1` `ACR-139-TP2` `ACR-139-TP3` `ACR-139-TP4` `ACR-145-TP1`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 FUN_038…             0             0             0             0             9
# ℹ 35 more variables: `ACR-145-TP2` <dbl>, `ACR-145-TP3` <dbl>,
#   `ACR-145-TP4` <dbl>, `ACR-150-TP1` <dbl>, `ACR-150-TP2` <dbl>,
#   `ACR-150-TP3` <dbl>, `ACR-150-TP4` <dbl>, `ACR-173-TP1` <dbl>,
#   `ACR-173-TP2` <dbl>, `ACR-173-TP3` <dbl>, `ACR-173-TP4` <dbl>,
#   `ACR-186-TP1` <dbl>, `ACR-186-TP2` <dbl>, `ACR-186-TP3` <dbl>,
#   `ACR-186-TP4` <dbl>, `ACR-225-TP1` <dbl>, `ACR-225-TP2` <dbl>,
#   `ACR-225-TP3` <dbl>, `ACR-225-TP4` <dbl>, `ACR-229-TP1` <dbl>, …
# Get raw methylation data for this gene
cat("\n--- Raw Methylation Data ---\n")

--- Raw Methylation Data ---
apul_meth_raw <- apul_methylation %>%
  filter(gene_id == apul_test_gene)
print(apul_meth_raw)
# A tibble: 1 × 41
  gene_id  `ACR-139-TP1` `ACR-139-TP2` `ACR-139-TP3` `ACR-139-TP4` `ACR-145-TP1`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 FUN_038…          13.9          25.0          13.4          21.2          25.2
# ℹ 35 more variables: `ACR-145-TP2` <dbl>, `ACR-145-TP3` <dbl>,
#   `ACR-145-TP4` <dbl>, `ACR-150-TP1` <dbl>, `ACR-150-TP2` <dbl>,
#   `ACR-150-TP3` <dbl>, `ACR-150-TP4` <dbl>, `ACR-173-TP1` <dbl>,
#   `ACR-173-TP2` <dbl>, `ACR-173-TP3` <dbl>, `ACR-173-TP4` <dbl>,
#   `ACR-186-TP1` <dbl>, `ACR-186-TP2` <dbl>, `ACR-186-TP3` <dbl>,
#   `ACR-186-TP4` <dbl>, `ACR-225-TP1` <dbl>, `ACR-225-TP2` <dbl>,
#   `ACR-225-TP3` <dbl>, `ACR-225-TP4` <dbl>, `ACR-229-TP1` <dbl>, …
# Get processed values from combined dataset
cat("\n--- Values in Combined Dataset (used for plotting) ---\n")

--- Values in Combined Dataset (used for plotting) ---
apul_combined_check <- apul_combined %>%
  filter(gene_id == apul_test_gene)
print(apul_combined_check)
# A tibble: 1 × 6
  gene_id    mean_expression log_expression mean_methylation is_biomin species
  <chr>                <dbl>          <dbl>            <dbl> <lgl>     <chr>
1 FUN_038232            10.8           1.07             28.8 FALSE     Acropora…
# Manual calculation to verify
cat("\n--- Manual Verification ---\n")

--- Manual Verification ---
apul_expr_values <- apul_expr_raw %>%
  select(-gene_id) %>%
  unlist()
apul_meth_values <- apul_meth_raw %>%
  select(-gene_id) %>%
  unlist()

cat("Manual mean expression:", mean(apul_expr_values, na.rm = TRUE), "\n")
Manual mean expression: 10.775
cat("Manual log10(mean + 1):", log10(mean(apul_expr_values, na.rm = TRUE) + 1), "\n")
Manual log10(mean + 1): 1.070961
cat("Combined dataset log_expression:", apul_combined_check$log_expression, "\n\n")
Combined dataset log_expression: 1.070961
cat("Manual mean methylation:", mean(apul_meth_values, na.rm = TRUE), "\n")
Manual mean methylation: 28.83743
cat("Combined dataset mean_methylation:", apul_combined_check$mean_methylation, "\n")
Combined dataset mean_methylation: 28.83743
cat("\n✓ Values match: Expression =",
    round(log10(mean(apul_expr_values, na.rm = TRUE) + 1), 6) == round(apul_combined_check$log_expression, 6),
    ", Methylation =",
    round(mean(apul_meth_values, na.rm = TRUE), 6) == round(apul_combined_check$mean_methylation, 6), "\n")

✓ Values match: Expression = TRUE , Methylation = TRUE

Porites evermanni - Validation

# Pick a random gene from the combined dataset
set.seed(42)
peve_test_gene <- sample(peve_combined$gene_id, 1)

cat("=== VALIDATION FOR PORITES EVERMANNI ===\n")
=== VALIDATION FOR PORITES EVERMANNI ===
cat("Test gene ID:", peve_test_gene, "\n\n")
Test gene ID: gene-Peve_00040885
# Get raw expression data for this gene
cat("--- Raw Expression Data ---\n")
--- Raw Expression Data ---
peve_expr_raw <- peve_expression %>%
  filter(gene_id == peve_test_gene)
print(peve_expr_raw)
# A tibble: 1 × 39
  gene_id  `POR-216-TP1` `POR-216-TP2` `POR-216-TP3` `POR-216-TP4` `POR-236-TP1`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 gene-Pe…             0             4             0             0             2
# ℹ 33 more variables: `POR-236-TP2` <dbl>, `POR-245-TP1` <dbl>,
#   `POR-245-TP2` <dbl>, `POR-245-TP3` <dbl>, `POR-245-TP4` <dbl>,
#   `POR-260-TP1` <dbl>, `POR-260-TP2` <dbl>, `POR-260-TP3` <dbl>,
#   `POR-260-TP4` <dbl>, `POR-262-TP1` <dbl>, `POR-262-TP2` <dbl>,
#   `POR-262-TP3` <dbl>, `POR-262-TP4` <dbl>, `POR-69-TP1` <dbl>,
#   `POR-69-TP2` <dbl>, `POR-69-TP3` <dbl>, `POR-69-TP4` <dbl>,
#   `POR-72-TP1` <dbl>, `POR-72-TP2` <dbl>, `POR-72-TP3` <dbl>, …
# Get raw methylation data for this gene
cat("\n--- Raw Methylation Data ---\n")

--- Raw Methylation Data ---
peve_meth_raw <- peve_methylation %>%
  filter(gene_id == peve_test_gene)
print(peve_meth_raw)
# A tibble: 1 × 38
  gene_id  `POR-216-TP1` `POR-216-TP2` `POR-216-TP3` `POR-216-TP4` `POR-236-TP1`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 gene-Pe…         0.351         0.105          1.38         0.175          1.83
# ℹ 32 more variables: `POR-236-TP2` <dbl>, `POR-245-TP1` <dbl>,
#   `POR-245-TP2` <dbl>, `POR-245-TP3` <dbl>, `POR-245-TP4` <dbl>,
#   `POR-260-TP1` <dbl>, `POR-260-TP2` <dbl>, `POR-260-TP3` <dbl>,
#   `POR-260-TP4` <dbl>, `POR-262-TP1` <dbl>, `POR-262-TP2` <dbl>,
#   `POR-262-TP3` <dbl>, `POR-262-TP4` <dbl>, `POR-69-TP1` <dbl>,
#   `POR-69-TP2` <dbl>, `POR-69-TP3` <dbl>, `POR-69-TP4` <dbl>,
#   `POR-72-TP1` <dbl>, `POR-72-TP2` <dbl>, `POR-72-TP3` <dbl>, …
# Get processed values from combined dataset
cat("\n--- Values in Combined Dataset (used for plotting) ---\n")

--- Values in Combined Dataset (used for plotting) ---
peve_combined_check <- peve_combined %>%
  filter(gene_id == peve_test_gene)
print(peve_combined_check)
# A tibble: 1 × 6
  gene_id      mean_expression log_expression mean_methylation is_biomin species
  <chr>                  <dbl>          <dbl>            <dbl> <lgl>     <chr>
1 gene-Peve_0…           0.526          0.184            0.631 FALSE     Porite…
# Manual calculation to verify
cat("\n--- Manual Verification ---\n")

--- Manual Verification ---
peve_expr_values <- peve_expr_raw %>%
  select(-gene_id) %>%
  unlist()
peve_meth_values <- peve_meth_raw %>%
  select(-gene_id) %>%
  unlist()

cat("Manual mean expression:", mean(peve_expr_values, na.rm = TRUE), "\n")
Manual mean expression: 0.5263158
cat("Manual log10(mean + 1):", log10(mean(peve_expr_values, na.rm = TRUE) + 1), "\n")
Manual log10(mean + 1): 0.1836444
cat("Combined dataset log_expression:", peve_combined_check$log_expression, "\n\n")
Combined dataset log_expression: 0.1836444
cat("Manual mean methylation:", mean(peve_meth_values, na.rm = TRUE), "\n")
Manual mean methylation: 0.6312905
cat("Combined dataset mean_methylation:", peve_combined_check$mean_methylation, "\n")
Combined dataset mean_methylation: 0.6312905
cat("\n✓ Values match: Expression =",
    round(log10(mean(peve_expr_values, na.rm = TRUE) + 1), 6) == round(peve_combined_check$log_expression, 6),
    ", Methylation =",
    round(mean(peve_meth_values, na.rm = TRUE), 6) == round(peve_combined_check$mean_methylation, 6), "\n")

✓ Values match: Expression = TRUE , Methylation = TRUE

Pocillopora tuahiniensis - Validation

# Pick a random gene from the combined dataset
set.seed(42)
ptua_test_gene <- sample(ptua_combined$gene_id, 1)

cat("=== VALIDATION FOR POCILLOPORA TUAHINIENSIS ===\n")
=== VALIDATION FOR POCILLOPORA TUAHINIENSIS ===
cat("Test gene ID:", ptua_test_gene, "\n\n")
Test gene ID: gene-Pocillopora_meandrina_HIv1___RNAseq.g9000.t1
# Get raw expression data for this gene
cat("--- Raw Expression Data ---\n")
--- Raw Expression Data ---
ptua_expr_raw <- ptua_expression %>%
  filter(gene_id == ptua_test_gene)
print(ptua_expr_raw)
# A tibble: 1 × 40
  gene_id  `POC-201-TP1` `POC-201-TP2` `POC-201-TP3` `POC-219-TP1` `POC-219-TP2`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 gene-Po…          2158          1552           319          1066           803
# ℹ 34 more variables: `POC-219-TP3` <dbl>, `POC-219-TP4` <dbl>,
#   `POC-222-TP1` <dbl>, `POC-222-TP2` <dbl>, `POC-222-TP3` <dbl>,
#   `POC-222-TP4` <dbl>, `POC-255-TP1` <dbl>, `POC-255-TP2` <dbl>,
#   `POC-255-TP3` <dbl>, `POC-255-TP4` <dbl>, `POC-259-TP1` <dbl>,
#   `POC-259-TP2` <dbl>, `POC-259-TP3` <dbl>, `POC-259-TP4` <dbl>,
#   `POC-40-TP1` <dbl>, `POC-40-TP2` <dbl>, `POC-40-TP3` <dbl>,
#   `POC-40-TP4` <dbl>, `POC-42-TP1` <dbl>, `POC-42-TP2` <dbl>, …
# Get raw methylation data for this gene
cat("\n--- Raw Methylation Data ---\n")

--- Raw Methylation Data ---
ptua_meth_raw <- ptua_methylation %>%
  filter(gene_id == ptua_test_gene)
print(ptua_meth_raw)
# A tibble: 1 × 33
  gene_id  `POC-201-TP1` `POC-201-TP2` `POC-219-TP1` `POC-219-TP2` `POC-219-TP3`
  <chr>            <dbl>         <dbl>         <dbl>         <dbl>         <dbl>
1 gene-Po…          13.0          13.5          11.1          11.8          12.0
# ℹ 27 more variables: `POC-219-TP4` <dbl>, `POC-222-TP1` <dbl>,
#   `POC-222-TP3` <dbl>, `POC-222-TP4` <dbl>, `POC-255-TP1` <dbl>,
#   `POC-255-TP2` <dbl>, `POC-255-TP3` <dbl>, `POC-259-TP1` <dbl>,
#   `POC-259-TP2` <dbl>, `POC-40-TP1` <dbl>, `POC-40-TP2` <dbl>,
#   `POC-40-TP3` <dbl>, `POC-40-TP4` <dbl>, `POC-42-TP2` <dbl>,
#   `POC-42-TP4` <dbl>, `POC-52-TP1` <dbl>, `POC-52-TP2` <dbl>,
#   `POC-52-TP3` <dbl>, `POC-52-TP4` <dbl>, `POC-53-TP1` <dbl>, …
# Get processed values from combined dataset
cat("\n--- Values in Combined Dataset (used for plotting) ---\n")

--- Values in Combined Dataset (used for plotting) ---
ptua_combined_check <- ptua_combined %>%
  filter(gene_id == ptua_test_gene)
print(ptua_combined_check)
# A tibble: 1 × 6
  gene_id      mean_expression log_expression mean_methylation is_biomin species
  <chr>                  <dbl>          <dbl>            <dbl> <lgl>     <chr>
1 gene-Pocill…           1221.           3.09             12.5 FALSE     Pocill…
# Manual calculation to verify
cat("\n--- Manual Verification ---\n")

--- Manual Verification ---
ptua_expr_values <- ptua_expr_raw %>%
  select(-gene_id) %>%
  unlist()
ptua_meth_values <- ptua_meth_raw %>%
  select(-gene_id) %>%
  unlist()

cat("Manual mean expression:", mean(ptua_expr_values, na.rm = TRUE), "\n")
Manual mean expression: 1221.026
cat("Manual log10(mean + 1):", log10(mean(ptua_expr_values, na.rm = TRUE) + 1), "\n")
Manual log10(mean + 1): 3.08708
cat("Combined dataset log_expression:", ptua_combined_check$log_expression, "\n\n")
Combined dataset log_expression: 3.08708
cat("Manual mean methylation:", mean(ptua_meth_values, na.rm = TRUE), "\n")
Manual mean methylation: 12.50447
cat("Combined dataset mean_methylation:", ptua_combined_check$mean_methylation, "\n")
Combined dataset mean_methylation: 12.50447
cat("\n✓ Values match: Expression =",
    round(log10(mean(ptua_expr_values, na.rm = TRUE) + 1), 6) == round(ptua_combined_check$log_expression, 6),
    ", Methylation =",
    round(mean(ptua_meth_values, na.rm = TRUE), 6) == round(ptua_combined_check$mean_methylation, 6), "\n")

✓ Values match: Expression = TRUE , Methylation = TRUE

Sample-Level Verification

This demonstrates that the same sample IDs exist in both expression and methylation datasets.

cat("=== SAMPLE ID VERIFICATION ===\n\n")
=== SAMPLE ID VERIFICATION ===
# Acropora pulchra
apul_expr_samples <- colnames(apul_expression)[-1]
apul_meth_samples <- colnames(apul_methylation)[-1]
cat("--- Acropora pulchra ---\n")
--- Acropora pulchra ---
cat("Expression samples:", length(apul_expr_samples), "\n")
Expression samples: 40
cat("Methylation samples:", length(apul_meth_samples), "\n")
Methylation samples: 40
cat("Shared samples:", length(intersect(apul_expr_samples, apul_meth_samples)), "\n")
Shared samples: 40
cat("Expression-only samples:", length(setdiff(apul_expr_samples, apul_meth_samples)), "\n")
Expression-only samples: 0
cat("Methylation-only samples:", length(setdiff(apul_meth_samples, apul_expr_samples)), "\n\n")
Methylation-only samples: 0
# Porites evermanni
peve_expr_samples <- colnames(peve_expression)[-1]
peve_meth_samples <- colnames(peve_methylation)[-1]
cat("--- Porites evermanni ---\n")
--- Porites evermanni ---
cat("Expression samples:", length(peve_expr_samples), "\n")
Expression samples: 38
cat("Methylation samples:", length(peve_meth_samples), "\n")
Methylation samples: 37
cat("Shared samples:", length(intersect(peve_expr_samples, peve_meth_samples)), "\n")
Shared samples: 37
cat("Expression-only samples:", length(setdiff(peve_expr_samples, peve_meth_samples)), "\n")
Expression-only samples: 1
cat("Methylation-only samples:", length(setdiff(peve_meth_samples, peve_expr_samples)), "\n\n")
Methylation-only samples: 0
# Pocillopora tuahiniensis
ptua_expr_samples <- colnames(ptua_expression)[-1]
ptua_meth_samples <- colnames(ptua_methylation)[-1]
cat("--- Pocillopora tuahiniensis ---\n")
--- Pocillopora tuahiniensis ---
cat("Expression samples:", length(ptua_expr_samples), "\n")
Expression samples: 39
cat("Methylation samples:", length(ptua_meth_samples), "\n")
Methylation samples: 32
cat("Shared samples:", length(intersect(ptua_expr_samples, ptua_meth_samples)), "\n")
Shared samples: 32
cat("Expression-only samples:", length(setdiff(ptua_expr_samples, ptua_meth_samples)), "\n")
Expression-only samples: 7
cat("Methylation-only samples:", length(setdiff(ptua_meth_samples, ptua_expr_samples)), "\n")
Methylation-only samples: 0

Session Info

sessionInfo()
R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Tahoe 26.1

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.1

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: America/Los_Angeles
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] patchwork_1.3.2 lubridate_1.9.4 forcats_1.0.1   stringr_1.5.2
 [5] dplyr_1.1.4     purrr_1.1.0     readr_2.1.5     tidyr_1.3.1
 [9] tibble_3.3.0    ggplot2_4.0.0   tidyverse_2.0.0

loaded via a namespace (and not attached):
 [1] utf8_1.2.6         generics_0.1.4     lattice_0.22-7     stringi_1.8.7
 [5] hms_1.1.3          digest_0.6.37      magrittr_2.0.4     evaluate_1.0.5
 [9] grid_4.5.1         timechange_0.3.0   RColorBrewer_1.1-3 fastmap_1.2.0
[13] Matrix_1.7-3       jsonlite_2.0.0     mgcv_1.9-3         scales_1.4.0
[17] cli_3.6.5          rlang_1.1.6        crayon_1.5.3       bit64_4.6.0-1
[21] splines_4.5.1      withr_3.0.2        yaml_2.3.10        tools_4.5.1
[25] parallel_4.5.1     tzdb_0.5.0         curl_7.0.0         vctrs_0.6.5
[29] R6_2.6.1           lifecycle_1.0.4    htmlwidgets_1.6.4  bit_4.6.0
[33] vroom_1.6.6        pkgconfig_2.0.3    pillar_1.11.1      gtable_0.3.6
[37] glue_1.8.0         xfun_0.54          tidyselect_1.2.1   rstudioapi_0.17.1
[41] knitr_1.50         farver_2.1.2       nlme_3.1-168       htmltools_0.5.8.1
[45] rmarkdown_2.30     labeling_0.4.3     compiler_4.5.1     S7_0.2.0
